Product Details:
|
| Photographic Area Is: | 2.4 × 2.4 Mm | Refrigeration And: | Non - Cooled |
|---|---|---|---|
| Encapsulated: | Metal | Material: | Metallic |
| Highlight: | S8745-01 Infrared Photoelectric Sensor,Infrared Photoelectric Sensor Silicon,Silicon Avalanche Photodiode |
||
Product Description:

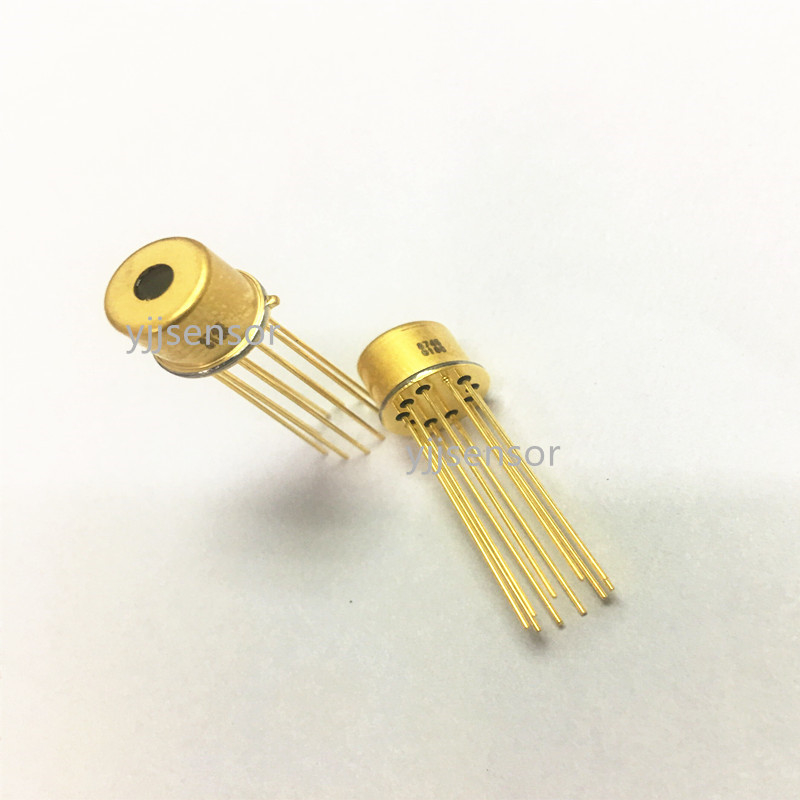

S8745-01 Silicon Photodiode With Preamplifier Low Noise Sensor
Features:
Preamplifier photodiodes with integrated feedback resistors and capacitors
S8745-01 is a low noise sensor composed of photodiodes, operational amplifiers, feedback resistors and capacitors, all packaged in a very small package. When connected to a power source, it can be used for weak light measurements, such as analysis devices or measuring devices. Its light sensitive surface is connected to the GND end and has high EMC noise resistance.
Product features
● Suitable for precise photometric determination from ultraviolet to near infrared
● Small metal package with quartz window: TO-5
● Photosensitive area :2.4×2.4 mm
● Built-in Rf=1 Gω Cf=5 pF
● Low power FET input op-amp
Low noise, low NEP
● External resistance to achieve variable gain
● Package with shielding function
● EMC noise resistance
Specifications:
| Reverse voltage (Max.) | 20 V |
| spectral response range is | 190 to 1100 nm |
| Peak sensitivity wavelength (typical value) | 960 nm |
| Noise equivalent power (typical value) | 11×10-15 W/ hz1/2 |
| Measurement conditions | Typ. Ta=25 ℃, F =10Hz, λ=λp, unless otherwise noted |
