Product Details:
|
| Sensor Principle: | Non-dispersive Infrared (NDIR) | Aisle: | Single Channel |
|---|---|---|---|
| Operating Temperature: | 0℃~50℃ | Working Humidity: | 0~90%RH |
| Measuring Range: | Conventional 400~2000ppm, Extended Up To 10000ppm | ||
| Highlight: | CRIR M1,Digital CO2 Sensor 400PPM,Non Dispersive Infrared CO2 Sensor |
||

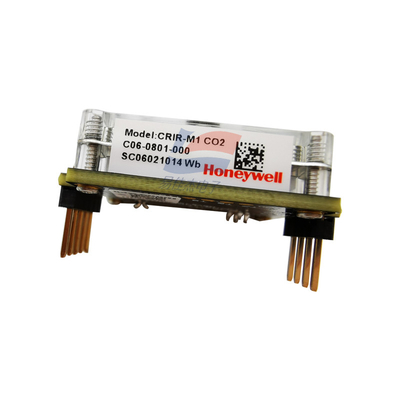

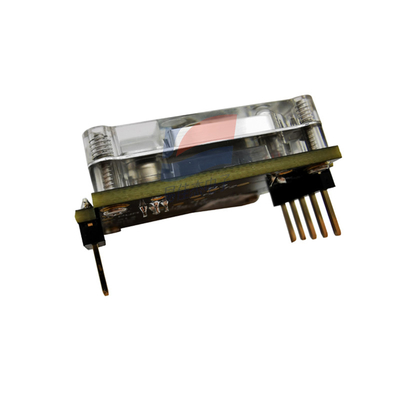

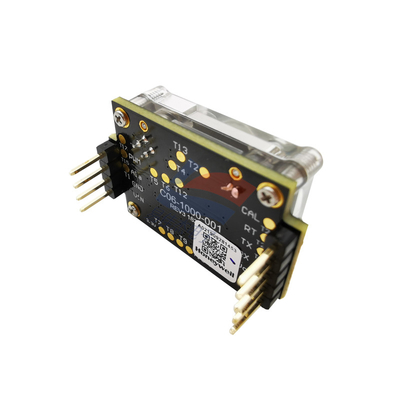

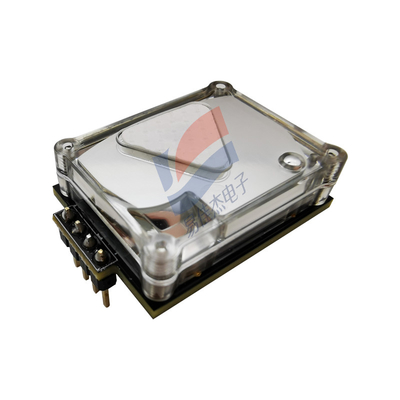

CRIR M1 CO2 Carbon Monoxide Sensors 400PPM To 2000PPM Small Size
The CRIR M1 carbon dioxide sensor is a gas sensor based on the principle of non-dispersive infrared (NDIR). It is favored by many instrument manufacturers and equipment integrators due to its small size, high integrability, automatic baseline calibration, temperature compensation and other advantages. This CO2 sensor uses a single-channel design. Infrared light is emitted from a light source at one end, through a filter (blocking wavelengths that are not sensitive to CO2), and on to an infrared detector. The higher the detected light source attenuation, the higher the CO2 concentration in the detected gas path. According to this principle combined with a scientific algorithm, the corresponding CO2 concentration value can be obtained.
Features:
Small size and light weight
Consistency and reproducibility
Good accuracy and large measuring range
Good stability and long life
quick response
Automatic baseline calibration
Temperature compensation
Maintenance-free for normal indoor application
UART digital interface
High integration
Parameter:
| Measurement accuracy | ±40ppm ±3% |
| Repeatability | >97% |
| Responding speed | ≤120 seconds |
| Measurement interval | 4 seconds |
| Operating Voltage | 4.5~5.5V |
| Sensor power consumption | Average 30mA, peak 300mA |
| Way of communication | UART, Modbus protocol |
| Weight | <8g |
| Size | 33mm*22mm*17.2mm |
Application:
Heating, ventilation and air conditioning industry
Air purification and treatment industry
Air Quality Monitoring Industry
Instrumentation Manufacturer
Smart/Smart Device Integrator
Smart City Project
LoT project
