Product Details:
|
| Type: | Air Flow Sensor | Used For: | Hydrogen Gas |
|---|---|---|---|
| Range: | +/- 25 Cm/min | Accuracy: | 0.35 % |
| Output Voltage: | 8.5 MV | Operating Supply Voltage: | 8 V To 15 V |
| Highlight: | AWM42150VH Medical Air Flow Sensor,Microbridge Medical Air Flow Sensor,Hydrogen Mass Flow Meter |
||

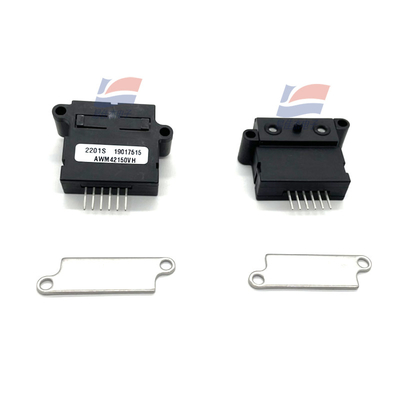

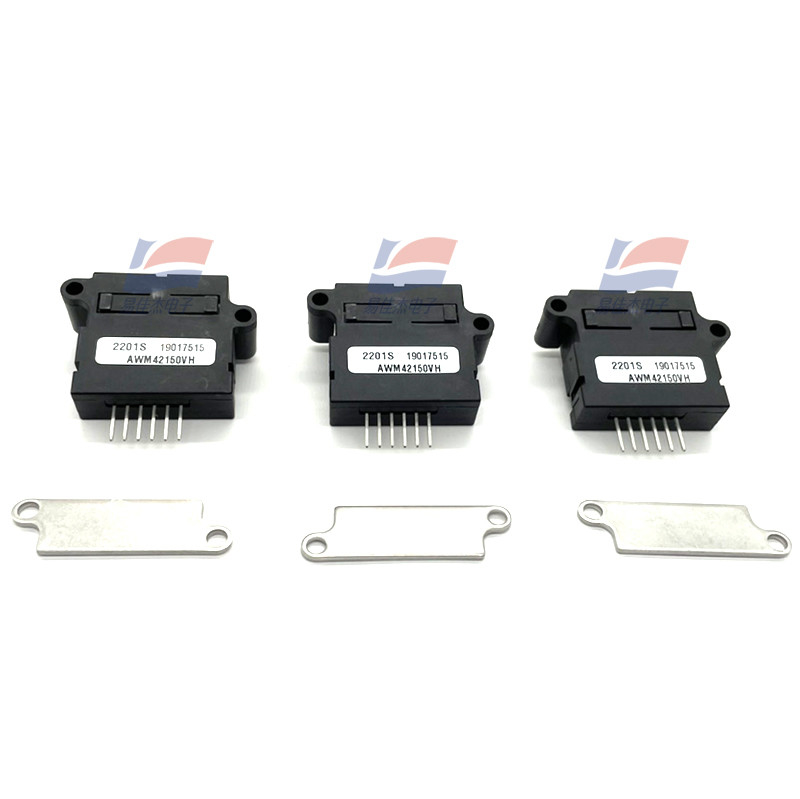

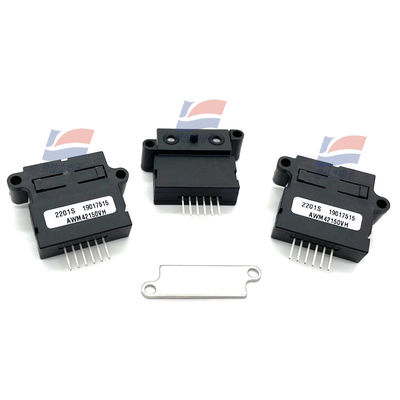

AWM42150VH Medical Air Flow Sensor Microbridge Hydrogen Mass Flow Meter Analog Output
Medical
*Respirators and ventilators
*Oxygen concentrators and conservers
*Anesthesia machines
Industrial
- HVAC damper control
- Gas analyzers
- Low vacuum control
- Process control
- Leak detection equipment
- Vent hoods
- Gas metering
- Chromatography
FEATURES
• Precision silicon micromachining
• Sensitivity to low flows (0.1 SCCM to
6 SLPM)
• Adaptable for use with higher flows
• Low power consumption allows for
use in portable devices and batterypowered applications
• Analog output
• Standard 2,54 mm [0.10 in] mounting centers
• Laser-trimmed interchangeability
• Accurate sensing of low pressure
| Port size | 4.826 mm |
| Output Type | Analog |
| Maximum operating temperature | + 125 C |
| Minimum operating temperature | - 40 C |
| Subcategory | Sensors |
| Shell Material | Silicon |
| Unit weight | 17.500 g |
