Product Details:
|
| Product Category: | Flow Sensor | Used For: | Dry Gas |
|---|---|---|---|
| Range: | 6 L/min | Accuracy: | 1 % |
| Output Voltage: | 5V | ||
| Highlight: | AWM43600V-2 Medical Air Flow Sensor,Microbridge Medical Air Flow Sensor,Mass Airflow Sensor Oxygen |
||

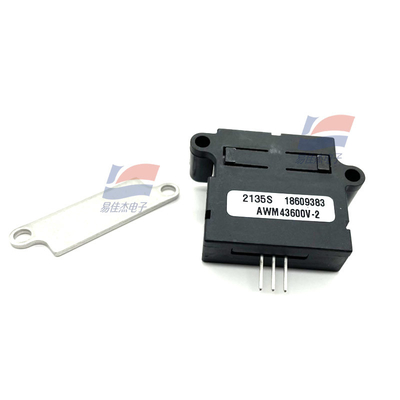

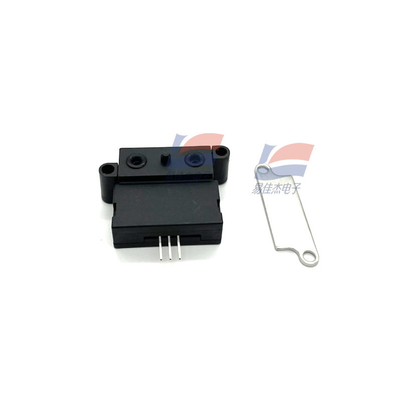

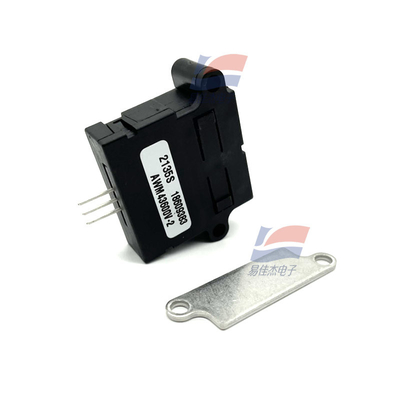

AWM43600V-2 Microbridge Mass Airflow Sensor Oxygen Concentrators And Conservers
FEATURES
• Precision silicon micromachining
• Sensitivity to low flows (0.1 SCCM to
6 SLPM)
• Adaptable for use with higher flows
• Low power consumption allows for
use in portable devices and batterypowered applications
• Analog output
• Standard 2,54 mm [0.10 in] mounting
centers
• Laser-trimmed interchangeability
• Accurate sensing of low pressure
| Operating supply voltage | 8 V to 15 V |
| Maximum operating temperature | + 85 C |
| Minimum operating temperature | - 25 C |
| Supply Voltage - Maximum | 15 V |
| Supply Voltage - Min | 8 V |
| Port size | 4.8 mm |
POTENTIAL APPLICATIONS
• Medical
- Respirators and ventilators
- Oxygen concentrators and
conservers
- Anesthesia machines
• Industrial
- HVAC damper control
- Gas analyzers
- Low vacuum control
- Process control
- Leak detection equipment
- Vent hoods
- Gas metering
- Chromatography
