Product Details:
|
| Photographic Area Is: | 10 × 2 Mm | Number Of Pixels: | 1 |
|---|---|---|---|
| Encapsulated: | Ceramic | Encapsulation Type: | Surface Mount Type |
| Reverse Voltage (Max.): | 30V | Spectral Response Range Is: | 320 To 1100 Nm |
| Highlight: | SI Pin Photodiode Light Transmission,LiDAR SI Pin Photodiode |
||
Product Description:

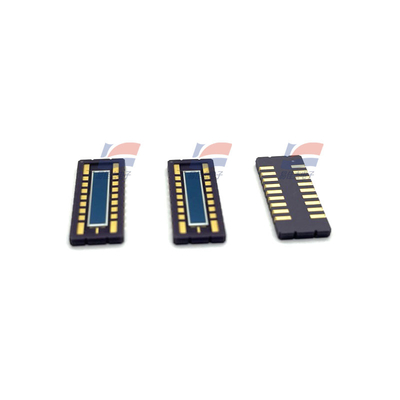

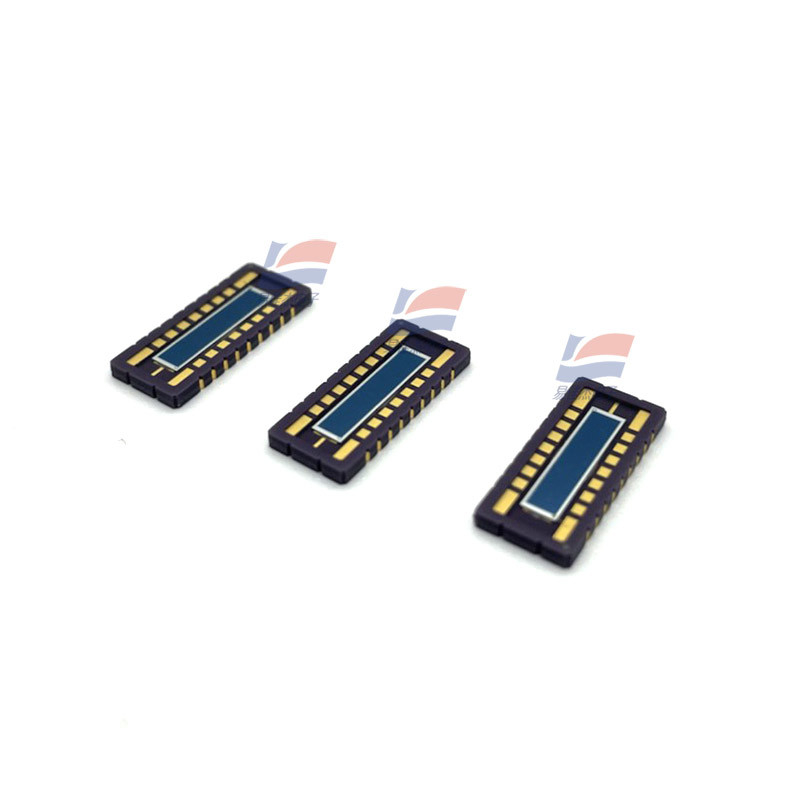

S7509 Si Pin Photodiode High Sensitivity Surface Mountable Ceramic Chip Carrier Package
Features:
Large photographic area, ceramic package, surface mount, high sensitivity. Suitable for space light transmission, liDAR, bar code recognizer
Cutoff frequency (typical value) 20 MHz
Noise equivalent power (typical value) 1.7×10-14 W/ hz1/2
Measurement conditions Ta=25 ℃, Typ., Photosensitivity: λ=λp, Dark current: VR==10 V, Cutoff frequency: VR=10 V, Terminal capacitance: VR=10 V, F =1 MHz, Noise equivalent power: VR=10 V, λ=λp, unless otherwise noted
Specifications:
| Peak sensitivity wavelength (typical value) | 920 nm |
| Sensitivity (typical value) | 0.72 A/W |
| Dark current (maximum) | 5000pA |
| Rise time (typical value) | 0.72 mu s |
| Junction capacitance (typical value) |
40 pF
|
