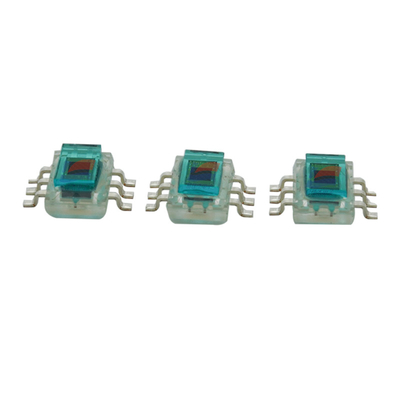

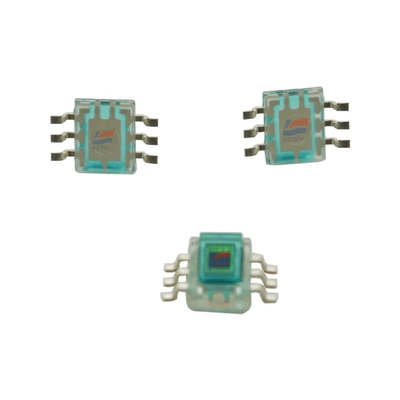

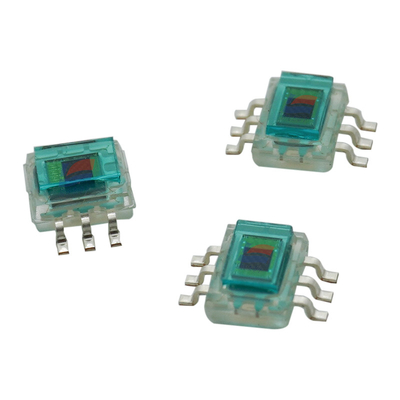

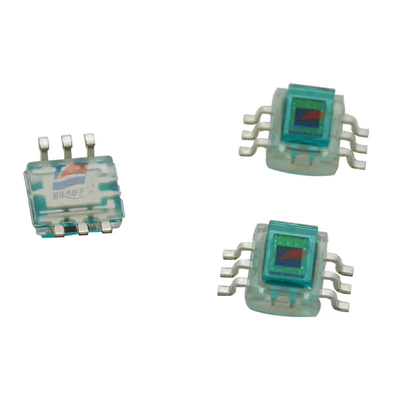

S9706 Digital RGB Three Color Sensor 12 Bit Digital Output Low Voltage

Product Description:

S9706 Digital RGB Three Color Sensor 12 Bit Digital Output Low Voltage

Features:

12-bit digital output

The S9706 is a digital color sensor sensitive to red (λ=615 nm), green (λ=530 nm), blue (λ=460 nm). The detection signal is serial output in 12 - bit digital form. Three 12-bit registers are built in, so three colors of RGB can be measured simultaneously. A total of two levels of sensitivity are adjustable, so a wide photometric range can be measured.

12-bit digital output

Measure RGB three colors at the same time

Two-stage sensitivity adjustable (sensitivity ratio 1:9)

Low voltage (3.3V) operation

CMOS monolithic optical IC

No external components required

Light sensitivity (low range, blue) 0.21 LSB/lx

Light sensitivity (low range, green) 0.45 LSB/lx

Light sensitivity (low range, red) 0.64 LSB/lx

Light sensitivity (high range, blue) 1.9 LSB/lx

Light sensitivity (high range, green) 4.1 LSB/ Lx

Light sensitivity (high range, red) 5.8 LSB/lx

Operating temperature -25 to +85 deg.c

Storage temperature -20 to +85 deg.c
