Product Details:
|
Power Supply: | ≤10V DC Or ≤3.0mA DC | Input Impedance: | 4K To 6 Kω |
---|---|---|---|
Output Impedance: | 4K To 6kω | Insulation Resistance: | 100mω,100VDC |
Allowed Overload: | 2 Times Full Scale | Bursting Pressure: | ≥3 Times Full Scale |
Highlight: | Electronic Pressure Sensor XGZP163,Electronic Pressure Sensor 700kPa,Piezoresistive Differential Pressure Sensor |
Product Description:

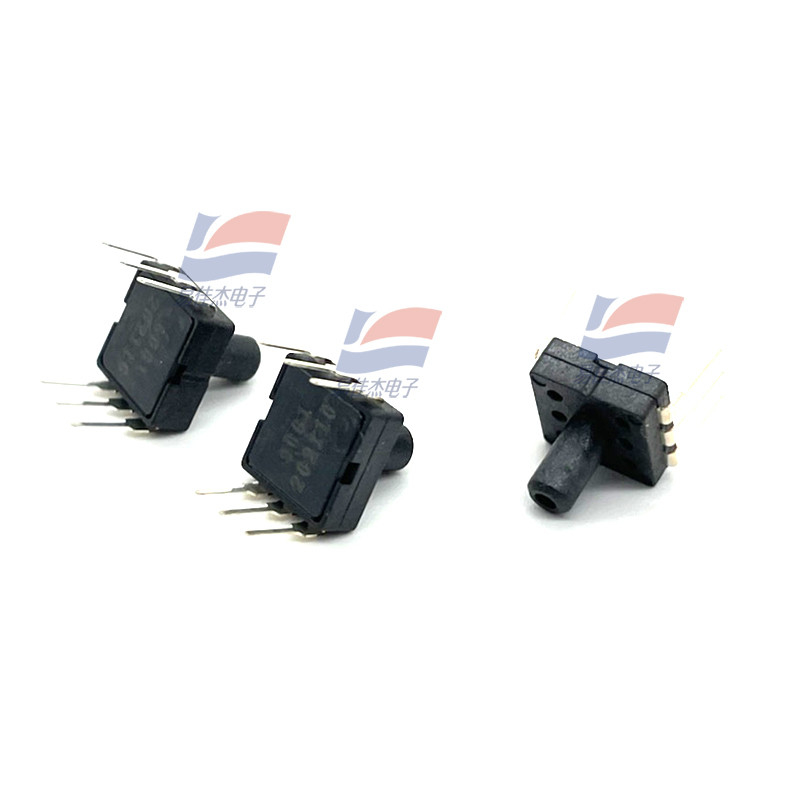

XGZP163 Pressure Sensor -100kPa ~ 0kPa... 700kPa Is Used For Non-corrosive Gases
Features:
XGZP163 piezoresistive pressure sensor chip is suitable for biomedical, automotive electronics and other fields. Its core part is a silicon piezoresistive pressure sensor chip processed by MEMS technology. The pressure sensing chip is composed of an elastic membrane and four resistors integrated on the membrane. The four varistors form a Wheatstone bridge structure. When pressure is applied on the elastic membrane, the bridge will produce a voltage output signal linearly proportional to the applied pressure.
XGZP163 pressure sensor chip adopts standard SOP6 package, which is convenient for users to install by surface mount. Air nozzle with anti - release structure.
Good linearity, repeatability and stability, high sensitivity, convenient for users to debug and compensate for output and temperature drift.
Electronic sphygmomanometer, ventilator, oxygen generator, monitor and other medical fields
Tire pressure gauge, MAP, steering power assist, brake power assist and other automotive electronics
Massager, massage chair, air mattress and other sports and fitness equipment field
Vacuum packing machine, vacuum mixer, vacuum wall breaker, vacuum preservation box, vacuum pump and other vacuum negative pressure fields
Washing machine, beer machine, coffee machine, vacuum cleaner, water purifier, pressure instrument, pneumatic components and other fields
Specifications:
Measurement medium | air |
medium temperature | (25±1) ℃ |
ambient temperature | (25±1) ℃ |
Vibration | 0.1g(1m/ S2)Max |
humidity | (50%±10%) RH |
