Product Details:
|
| Zero Point Temperature Drift: | ± 0.03% FS/℃ | Full Distance Temperature Drift: | ± 0.03% FS/℃ |
|---|---|---|---|
| Long-term Stability (1 Year): | ± 0.5%span | Overload Pressure: | 2× Rated |
| Compensation Temperature: | 0 ~ 60 ℃ | ||
| Highlight: | 1000kPa Electronic Pressure Sensor,Electronic Pressure Sensor 5.5VDC,Medical MEMS Pressure Sensor |
||
Product Description:

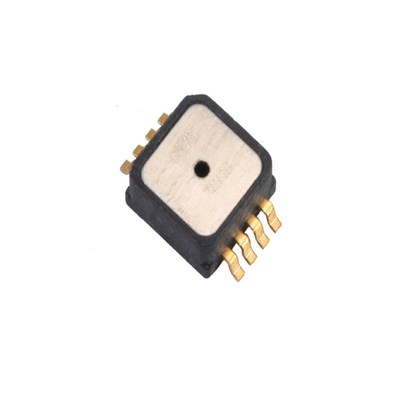

XGZP6868D 0kPa To 1000kPa Pressure Sensor Module Used For Non-corrosive And Non-conductive Gases Or Liquids
Features:
XGZP6878D pressure module adopts SMD package form, integrated pressure sensitive element and digital conditioning chip, pressure sensitive element
The offset, sensitivity, temperature drift and nonlinearity are digitally compensated for, using the supply voltage as a reference to produce a calibrated, temperature compensated
Digital output signal.
XGZP6878D pressure module size is small, easy to install, widely used in medical electronics, automotive electronics, sports and fitness equipment and other fields.
Performance index
Power supply :(2.5 ~ 5.5) V DC
Reference temperature: 25℃
Application field
· Tire pressure gauge, MAP sensor, vehicle air pump and other automotive electronic fields
· No negative pressure drainage, nebulizer, ward aerodynamics and other medical fields
· Vacuum pumps, pressure switches and other instrumentation fields
· Other gauge pressure systems
Specifications:
| Item | value | unit |
| Accuracy | ±0.5 | ± 1%span |
| Response time | 2.5ms@OSR_P=1024X | Ms |
| SDA/SCL pull-up resistance | 4.7 | Kohm |
| ESD HBM | 4000 | V |
| Storage temperature | -40 ~ 150 | ℃ |
