Product Details:
|
| Name: | NDIR CO2 Sensor | Type: | Gas Sensor |
|---|---|---|---|
| Sensor Type: | Carbon Dioxide (CO2) | Maximum Operating Temperature: | + 50 C |
| Highlight: | SCD30 Carbon Dioxide Sensor,Carbon Dioxide Sensor NDIR,CO2 Air Quality Sensor Module |
||

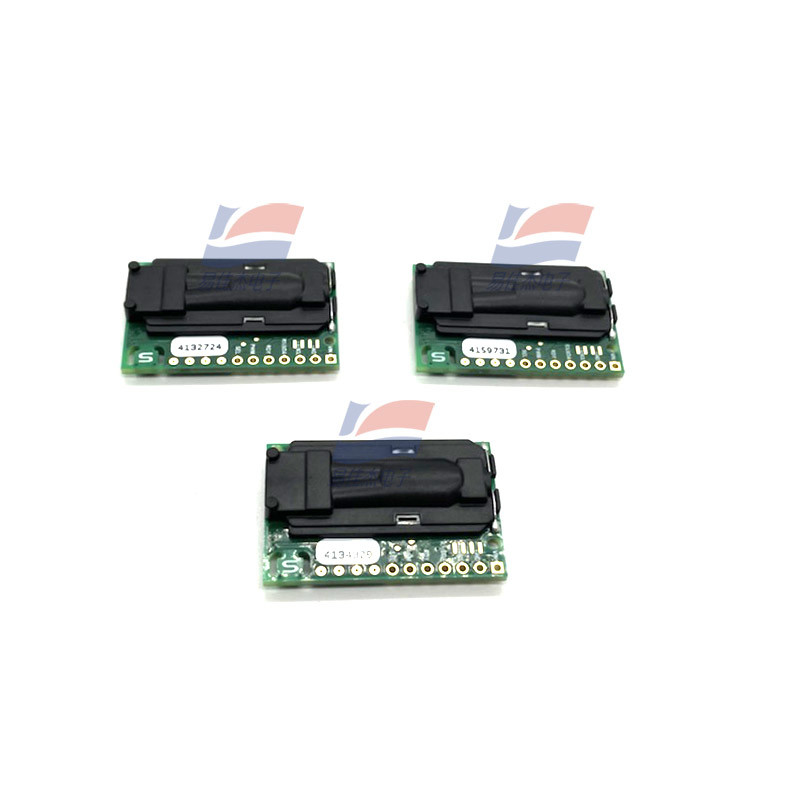

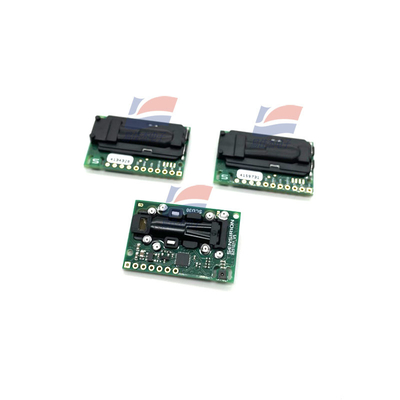

SCD30 Carbon Dioxide Sensor NDIR Gas Sensor Module CO2 Air Quality
Product Summary
CMOSens® Technology for IR detection enables carbon dioxide measurements of the highest accuracy at a
competitive price.
Along with the NDIR measurement technology for detecting CO2 comes a best-in-class Sensirion humidity and
temperature sensor integrated on the very same sensor module. Ambient humidity and temperature can be
measured by Sensirion’s algorithm expertise through modelling and compensating of external heat sources
without the need of any additional components. The very small module height allows easy integration into
different applications.
▪ NDIR CO2 sensor technology
▪ Integrated temperature and humidity sensor
▪ Best performance-to-price ratio
▪ Dual-channel detection for superior stability
▪ Small form factor: 35 mm x 23 mm x 7 mm
▪ Measurement range: 400 ppm – 10.000 ppm
▪ Accuracy: ±(30 ppm + 3%)
▪ Current consumption: 19 mA @ 1 meas. per 2 s.
▪ Fully calibrated and linearized
▪ Digital interface UART or I2C
Specification:
| Operating Supply Voltage | 3.3 V to 5.5 V |
| Current Rating | 17 mA |
| Installation style | SMD/SMT |
| Package | Tray |
| Supply Voltage - Maximum | 5.5 V |
| Supply Voltage - Min | 3.3 V |
| Unit weight | 18.490 g |
