R9454 Infrared Photoelectric Sensor UVTRON Flame Photometric Detector

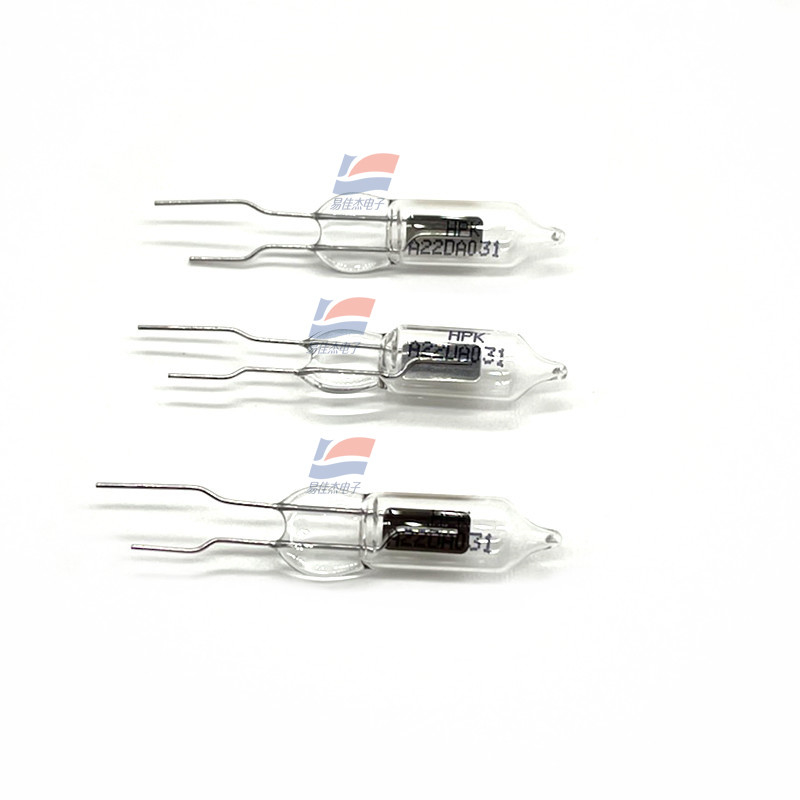

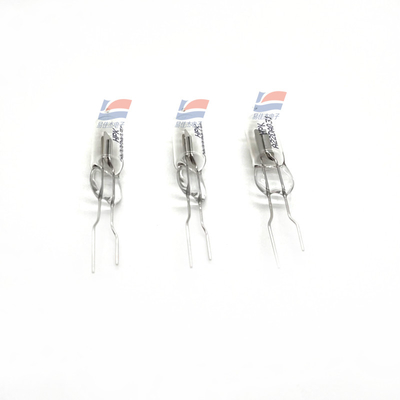

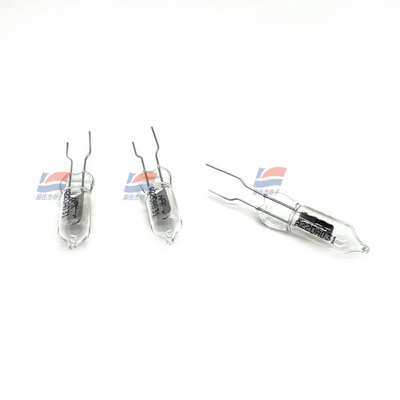

Large Image : R9454 Infrared Photoelectric Sensor UVTRON Flame Photometric Detector

Product Details:

Place of Origin:	Japan
Brand Name:	Hamamatsu
Model Number:	R9454

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	In a box
Delivery Time:	3-5work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1501/pcs/pre

Contact Now

R9454 Infrared Photoelectric Sensor UVTRON Flame Photometric Detector

Description

Spectral Response (short):	185 Nm	Spectral Response (length):	260 Nm
Electrode Material:	Ni	Weight Of:	1.5 G
Supply Voltage (DC):	500 V	Average Discharge Current:	1 MA
Highlight:	R9454 Infrared Photoelectric Sensor , Infrared Photoelectric Sensor UVTRON , Flame Photometric Detector

Product Description:

R9454 Flame Detector Ultraviolet Light Incident From The Side Of The Tube (UVTRON)

Features:

R9454 is a side-window flame detector with a similar profile to the R2868 UVTRON (UV light coming from the side of the tube body). It also has high sensitivity and wide field of view (directionality).

Maximum background noise: 10 min-1

The average life is 10000 h

[Recommended operating parameters] Supply voltage (DC) 400±25 V

[Recommended operating parameters] Average discharge current 0.3 mA

[Recommended Parameter] Quench time Minimum value: 2 ms

Specifications:

Peak current	30 mA
Operating ambient temperature	-20 to +60 ° C
Discharge start voltage (DC)	360 V
Discharge maintenance voltage (DC)	300 V
Typical sensitivity of	4000 min-1

R9454 Infrared Photoelectric Sensor UVTRON Flame Photometric Detector 0
