Product Details:
|
| Spectral Response (short): | 185 Nm | Spectral Response (length): | 260 Nm |
|---|---|---|---|
| Electrode Material: | Ni | Weight Of: | 2.5g |
| Supply Voltage (DC): | 400 V | Average Discharge Current: | 1 MA |
| Highlight: | R9533 Infrared Photoelectric Sensor,Infrared Photoelectric Sensor 185 nm,UVTRON Flame Detector |
||
Product Description:

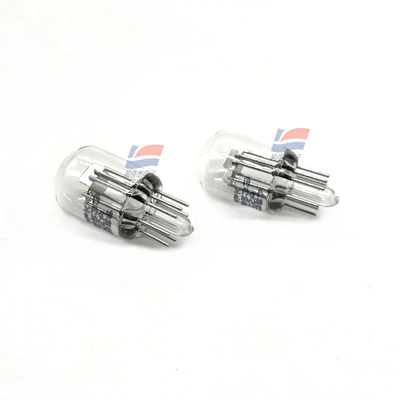

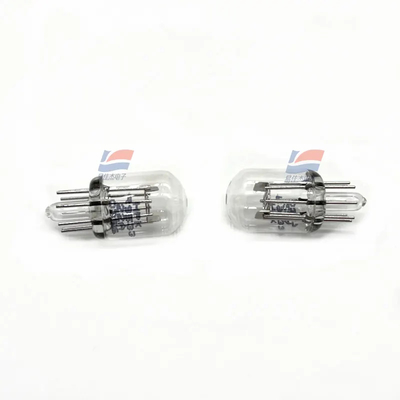

R9533 Infrared Photoelectric Sensor 185 nm UVTRON Flame Detector Fire Detection For Public
Features:
R9533 is an end to end window (UV light coming from the end face of the tube) flame detector that is easy to install in most devices. It also has high sensitivity and a wide field of view.
Typical sensitivity value: 10000 min-1
Maximum background noise: 5 min-1
The average life is 10000 h
[Recommended operating parameters] Supply voltage (DC) 350±25 V
[Recommended operating parameters] Average discharge current 0.3 mA
[Recommended Parameter] Quench time Minimum value: 1 ms
Adapter holder (sold separately) E678-8F
Specifications:
| Average discharge current | 1 mA |
| Peak current | 30 mA |
| Operating ambient temperature | -20 to +125 ° C |
| Discharge start voltage (DC) | 280V |
| Discharge maintenance voltage (DC) | 230V |
