S1226-8BQ Silicon Photodiode For UV To Visible Precision Photometry Suppressed Near IR Sensitivity

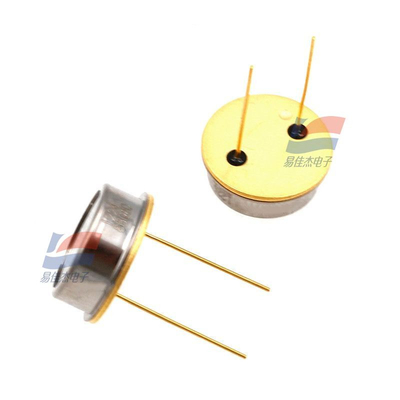

Large Image : S1226-8BQ Silicon Photodiode For UV To Visible Precision Photometry Suppressed Near IR Sensitivity

Product Details:

Place of Origin:	Japan
Brand Name:	Hamamatsu
Model Number:	S1226-8BQ

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	In a box
Delivery Time:	3-5work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	3000/pcs/pre

Contact Now

S1226-8BQ Silicon Photodiode For UV To Visible Precision Photometry Suppressed Near IR Sensitivity

Description

Photographic Area Is:	5.8 × 5.8mm	Number Of Pixels:	1
Refrigeration And:	Non - Cooled	Encapsulated:	Metal
Encapsulation Type Is:	TO-8	Reverse Voltage (max):	5V
Highlight:	S1226-8BQ Infrared Photoelectric Sensor , Infrared Photoelectric Sensor Precision Photometry , U Type Photoelectric Sensor

Product Description:

S1226-8BQ Silicon Photodiode For UV To Visible Precision Photometry Suppressed Near IR Sensitivity

Features:

● High UV sensitivity: QE = 75% (λ=200 nm)

● Suppress NIR sensitivity

● Low dark current

● High reliability

Dark current (maximum) 20 pA

Rise time (typical value). 2 mu s

Junction capacitance (typical value) 1200 pF

Measurement condition Ta=25 ℃, Typ., Unless otherwise noted, Photosensitivity: λ=720 nm, Dark current: VR=10 mV, Terminal capacitance: VR=0 V, f=10 kHz

Specifications:

Reverse voltage (Max.)	5V
spectral response range is	190 to 1000 nm
peak sensitivity wavelength (typical value) was	720 nm
Type	infrared photoelectricity

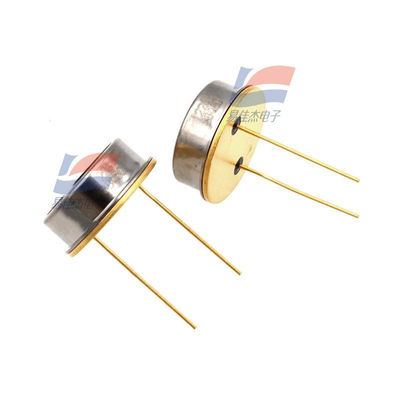

S1226-8BQ Silicon Photodiode For UV To Visible Precision Photometry Suppressed Near IR Sensitivity 0

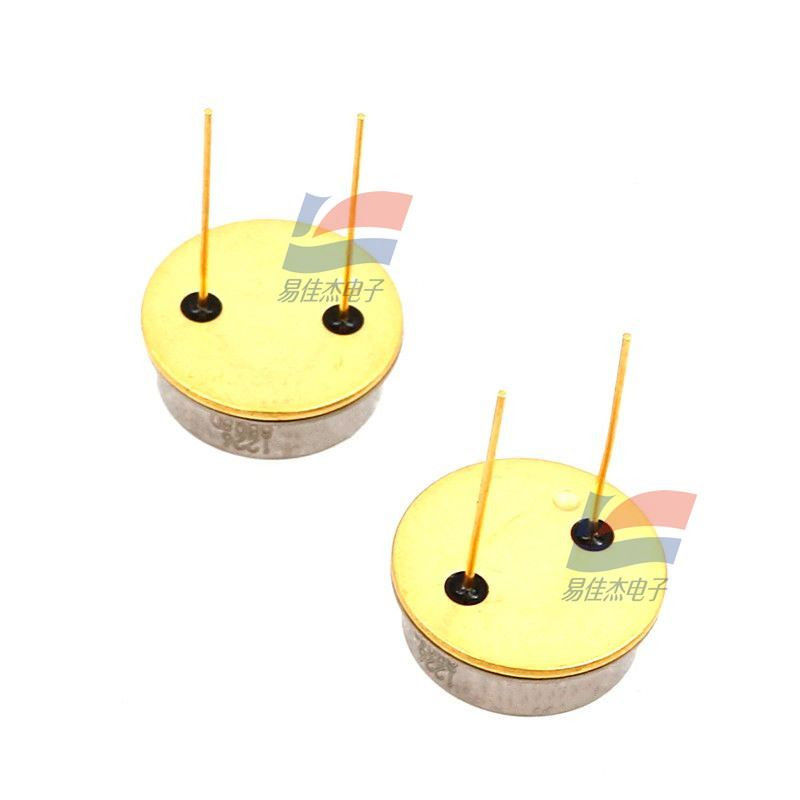

S1226-8BQ Silicon Photodiode For UV To Visible Precision Photometry Suppressed Near IR Sensitivity 1
