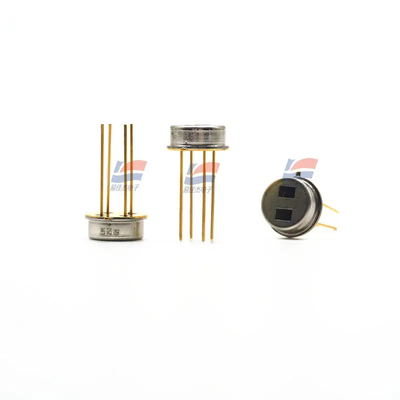

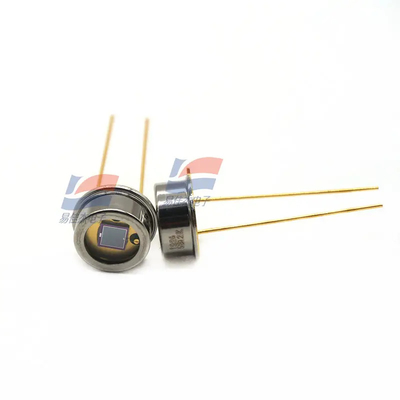

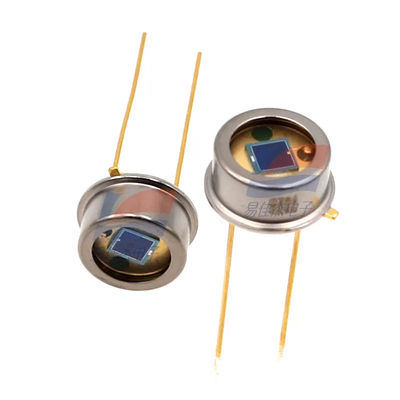

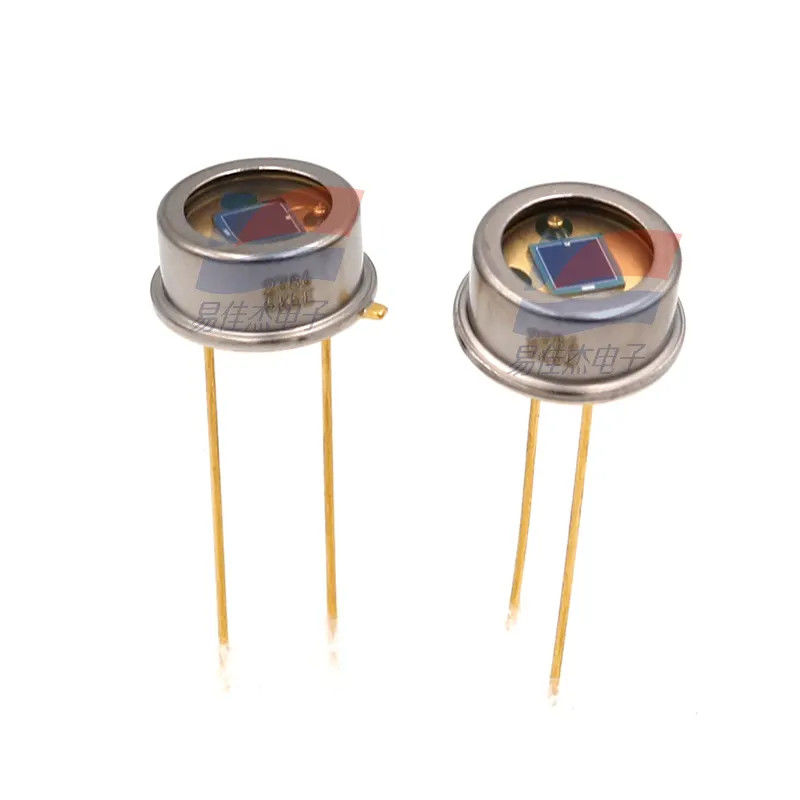

S2386-5K Silicon Photodiode Sensor Infrared Photoelectric Sensor 30 V Universal Geberal Purpose Photometry

Large Image : S2386-5K Silicon Photodiode Sensor Infrared Photoelectric Sensor 30 V Universal Geberal Purpose Photometry

Product Details:

Place of Origin:	Japan
Brand Name:	Hamamatsu
Model Number:	S2386-5K

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Tube
Delivery Time:	3-5work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	3000/pcs/month

Contact Now

S2386-5K Silicon Photodiode Sensor Infrared Photoelectric Sensor 30 V Universal Geberal Purpose Photometry

Description

Photographic Area Is:	2.4 × 2.4 Mm	Number Of Pixels:	1
Refrigeration:	Non - Cooled	Encapsulated:	Metal
Encapsulation Type Is:	TO-5	Reverse Voltage (max):	30V
Highlight:	S2386-5K Infrared Photoelectric Sensor , Infrared Photoelectric Sensor 30 V , Silicon Photodiode Sensor

Product Description:

S2386-5K Silicon Photodiode Sensor Infrared Photoelectric Sensor 30 V Universal Geberal Purpose Photometry

Features:

Suitable for visible light to near infrared band, universal photometric determination

Product features

● High sensitivity in visible to near infrared band

● Low dark current

● High reliability

● High linearity

Measurement condition TYP.TA =25 ℃, Unless otherwise noted,Photosensitivity: λ=960 nm, Dark current: VR=10 mV, Terminal capacitance: VR=0 V, f=10 kHz

Specifications:

Reverse voltage (Max.)	30 V
spectral response range is	320 to 1100 nm
Peak sensitivity wavelength (typical value)	960 nm
Sensitivity (typical value)	0.6 A/W
Dark current (maximum)	5 pA
Rise time (typical value).	1.8 u s
Junction capacitance (typical value)	730 pF

S2386-5K Silicon Photodiode Sensor Infrared Photoelectric Sensor 30 V Universal Geberal Purpose Photometry 0

S2386-5K Silicon Photodiode Sensor Infrared Photoelectric Sensor 30 V Universal Geberal Purpose Photometry 1
