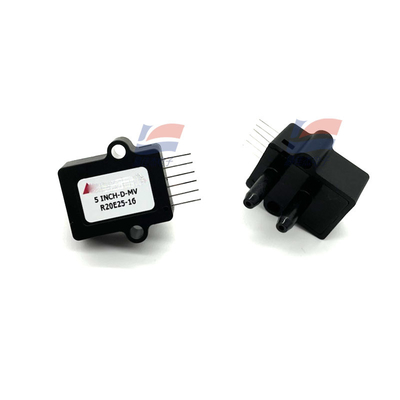

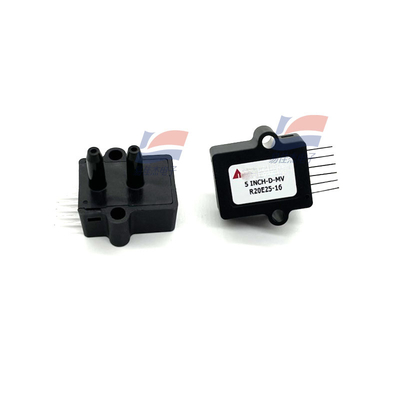

5 INCH-D-MV Oxygen Pressure Sensor 1KP High Accuracy Differential Pressure Transducer

Product Description:

5 INCH D-MV Biochemical Oxygen Consumption Differential Pressure 1KPa Pressure Sensor

Features:

The millivolt output pressure sensor uses proprietary dual-chip technology to effectively reduce the output offset or common-mode error, and outputs a millivolt signal with superior output offset characteristics and corrected. Compared with the traditional compensation method, this type of sensor can improve the output offset error caused by the environmental temperature change, heat engine stability, long-term use and position sensitivity. The sensor adopts silicon technology, micro-electro-mechanical technology and enhanced stress concentration structure, and the output signal of the measured pressure is very linear.

The corrected and temperature compensated sensor achieves stable output over a wide temperature range. This series of sensors can be used for pressure measurement in non-corrosive, non-ionic fluid media, such as air, dry gases and other similar environments.

The output signal of the sensor is proportional to the operating voltage, and the power supply is a DC voltage not higher than +16V.

Reference selection:

1 MBAR v + / - 0.1 - D - 4 kpa

1 INCH - D - 4 v + 250 pa

1 INCH-D-4V 0-250pa

2.5 INCH - D - 4 v + 1 kpa

2.5 INCH - G - 4 v 0-1 kpa

5 INCH - D - 4 v + / - 1.25 Kpa

5 INCH - G - 4 v 0-1.25 Kpa

10 INCH - D - 4 v + / - 2.5 kpa

10 INCH - G - 4 v 0-2.5 kpa

20 INCH - D - 4 v + / - 5 kpa

20 INCH-G-4V 0-5kpa

30 INCH v + / - 7.5 - G - 4 kpa

30 INCH - D - 4 v 0-7.5 kpa

40 INCH - G - 4 v + 10 kpa

60 INCH-G-4V 0-1010kpa

Specifications:
