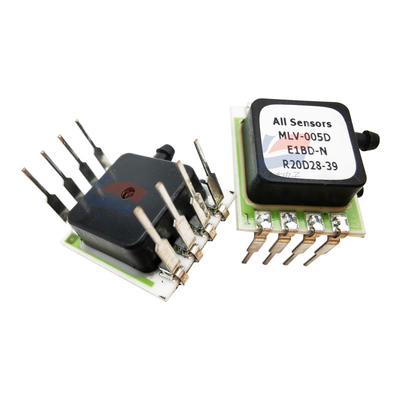

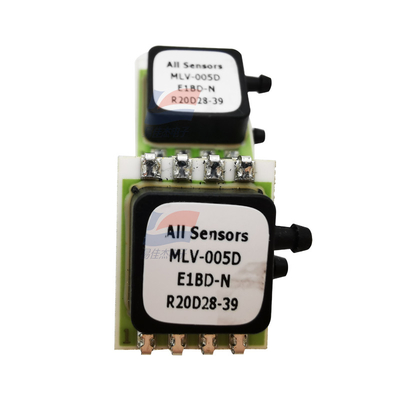

MLV-005D-E1BD-N Low Voltage Pressure Sensor 35Kpa Digital Barometric Pressure Sensor Module

Product Description:

MLV-005D-E1BD-N Board Machine Interface Pressure Sensor 35Kpa Pressure Sensor

Features:

The MLV series of compensated low voltage Sensors is based on CoBeamTM*** technology from All Sensors, Inc. and provides a high output signal at low supply voltage, which is comparable to conventional high supply voltage Sensors. The low supply voltage reduces the temperature drift of the sensor, and the CoBeamTM technology reduces the packaging stress, thus improving the long-term stability of the sensor. The position sensitivity of the sensor is also effectively reduced by using this technology.

MLV series low pressure sensor temperature compensation range is wide, and after correction, can provide excellent and stable output signal. This series of sensors can be used in non-corrosive, non-ionic gas environments such as air, dry gas and other similar environments. Special protective coatings are available for use in wet/harsh media.

The output signal value of the sensor is proportional to the supply voltage, and the designed working voltage is 5.0V DC.

Specifications:
