NPH-8-100GH Solid State Pressure Sensor 100Kpa , Millivolt Output Pressure Transducers

Product Description:

NPH-8-100GH Millivolt Signal Output Gauge Pressure 100Kpa Solid State Pressure Sensor

Features:

NPH series solid state Pressure Sensor (medium and low pressure)

describe

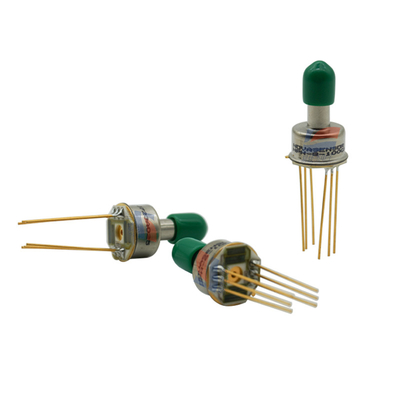

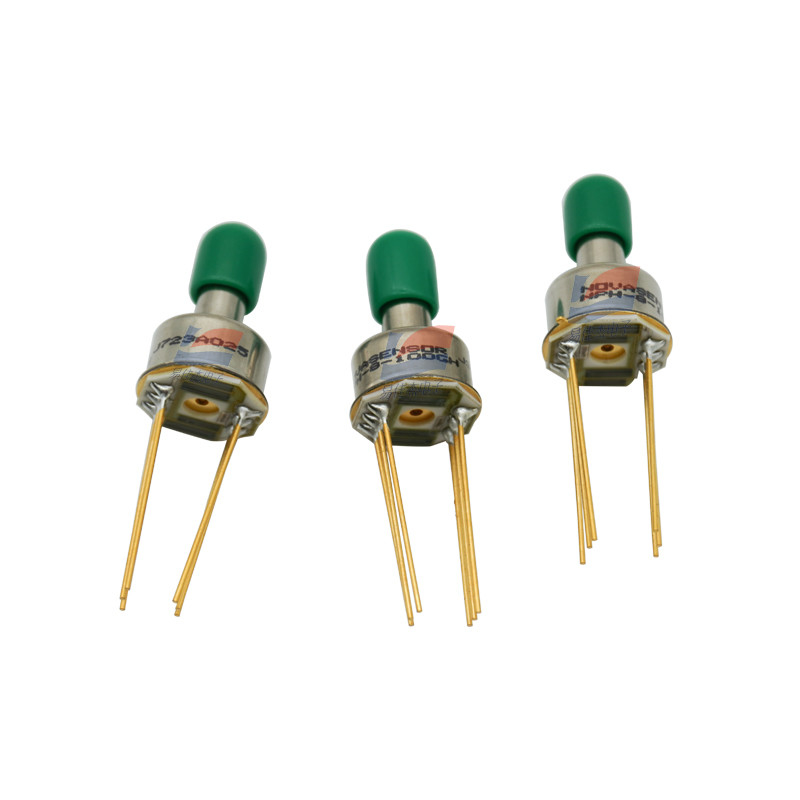

The IC type silicon sensor chip is packaged in a standard TO-8 package suitable for PCB (printed circuit board) mounting.

VLSI and the most advanced silicon micromachining techniques are used to transfer silicon resistance strains via ion implantation to form the desired Wheatstone bridge structure, the Wheatstone

The bridge structure is formed on the silicon diaphragm of the micromachine. And all of NovaSensor? Silicon sensors like the NPH series possess

SenTable? Excellent output stability of the technology. Constant current excitation makes the voltage output generated by the sensor linear with the pressure output

Relationship.

The user can build a signal regulating circuit to amplify the output signal of 100mV. The sensor is suitable for most non-corrosive gases and

Dry the air.

A photoresist thick film resistance circuit on a hybrid ceramic substrate provides temperature compensation for the sensor.

Specifications:
