Product Details:
|
| Supply Voltage(2): | VS — 10 16 Vdc | Supply Current: | Io — 6.0 — MAdc |
|---|---|---|---|
| Full Scale Span(3) MPX2100A, MPX2100D: | VFSS 38.5 40 41.5 MV | Sensitivity: | 0.4 — MV/kPa |
| Pressure Hysteresis(5) (0 To 100 KPa): | ±0.1 — %VFSS | ||
| Highlight: | 14.5PSi Pressure Sensor,MPX2100D Pressure Sensor |
||
Product Description:

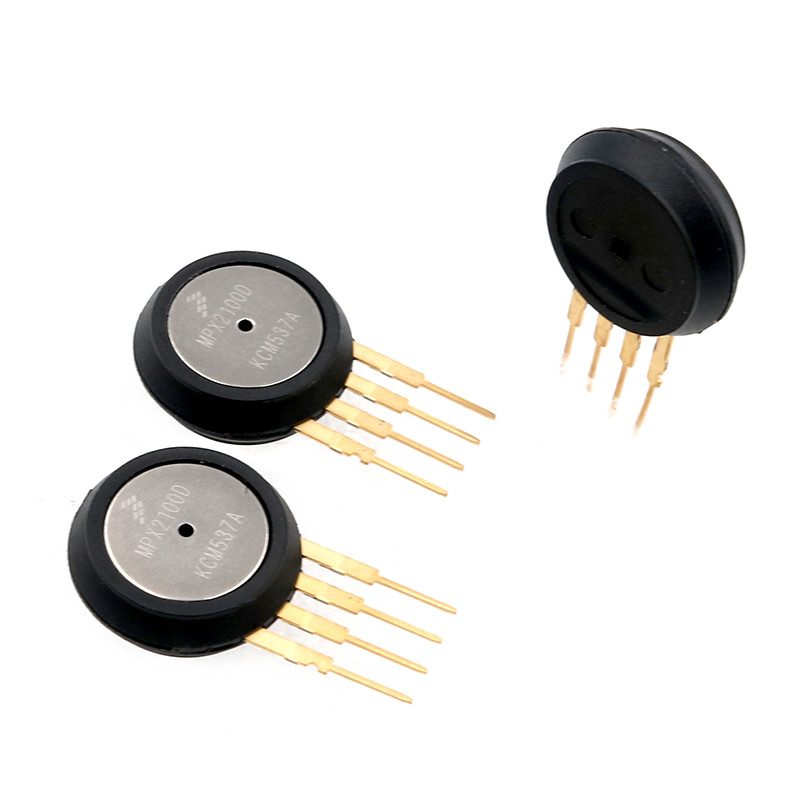

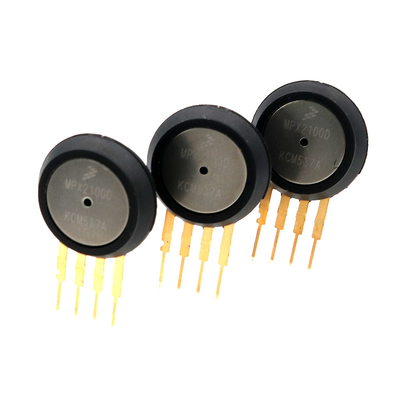

MPX2100D 0-100 kpa (0-14.5PSi) with compensatory pressure sensor
Features:
The MPX2100 series device is a silicon piezoresistive pressure sensors providing a
highly accurate and linear voltage output — directly proportional to the applied pressure.
The sensor is a single, monolithic silicon diaphragm with the strain gauge and a thin–film
resistor network integrated on–chip. The chip is laser trimmed for precise span and offset
calibration and temperature compensation.
Temperature Compensated Over 0°C to +85°C
Unique Silicon Shear Stress Strain Gauge
Easy to Use Chip Carrier Package Options
Available in Absolute, Differential and Gauge Configurations
Ratiometric to Supply Voltage
±0.25% Linearity (MPX2100D)
Application Examples
Pump/Motor Controllers
Robotics
Level Indicators
Medical Diagnostics
Pressure Switching
Barometers
Altimeters
Figure 1 illustrates a block diagram of the internal circuitry on the stand–alone
pressure sensor chip.
Specifications:
| Overpressure(8) (P1 > P2) | Pmax 200 kPa |
| Burst Pressure(8) (P1 > P2) | Pburst 1000 kPa |
| Storage Temperature | Tstg –40 to +125 °C |
| Operating Temperature | TA –40 to +125 °C |
| Pressure Range(1) | POP 0 — 100 kPa |
