Product Details:
|
| Used For: | Dry Gas | Range: | 200 Cm/min |
|---|---|---|---|
| Accuracy: | 0.5 % | Output Voltage: | 5 V |
| Operating Power Supply Voltage: | 8 V To 15 V | Port Size: | 5.08 Mm |
| Highlight: | AWM3100V Gas Flow Sensor,Gas Flow Sensor 200 SCCM |
||
Product Description:

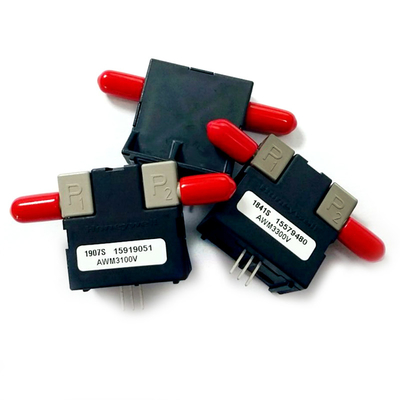

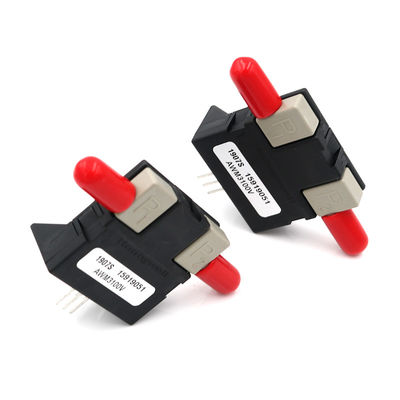

AWM3100V Gas Flow Sensor 200 SCCM Straight For Medical Devices For Dry Gas
Features:
1. The environmental monitoring
2. Gas flow measurement
3. Gas content analysis ventilator / respirator
4. The mist mechanism
Product technical specifications parameters:
Series name AWM3000
Flow/pressure range + 200 SLPM
Zero ±25.0 mV DC over the entire temperature range
Repeatability ±0.50% of readings
The typical value of response time is 1 ms, and the large value is 3 ms
The interface type is straight
The typical power consumption is 50 mW, and the large power consumption is 60 mW
Compensation temperature range -25°C to 85°C [-13°F to 185°F]
Medium compatibility only dry gas
Shock 100g peak (5 drops, 6 axes)
UNSPSC code 41111931
Signal regulation amplification
The output voltage of the adjustment point is 200 SCCM, 5.0 Vdc
Output temperature drift ±4% full scale
Zero 1 Vdc ±0.05 Vdc
The power supply voltage is 8.0 Vdc for a small value, 10.0 Vdc for a typical value and 15.0 Vdc for a large value
Common-mode pressure 25 psi
Operating temperature -25°C to 85°C [-13°F to 185°F]
Storage temperature -40°C to 90°C [-40°F to 194°F]
The weight of 10.8 g
Supply of goods
UNSPSC commodity 41111931 flow sensor
Specifications:
| Port size | 5.08 mm |
| Shell material | Silicon |
| Trademark | |
| Maximum operating temperature | + 85 C |
| Minimum operating temperature | -25 C |
| Product type | Flow Sensors |
| Subcategory | Sensors |
| Unit weight | 10.800g |
