Product Details:
|
| Pressure Type: | Absolute | Working Pressure: | 14.5 Psi |
|---|---|---|---|
| Accuracy: | 0.5 % | Output Type: | Analog |
| Installation Style: | SMD/SMT | ||
| Highlight: | MPXM2102AS Pressure Sensor,Board Interface silicon piezoresistive pressure sensors,Absolute silicon piezoresistive pressure sensors |
||

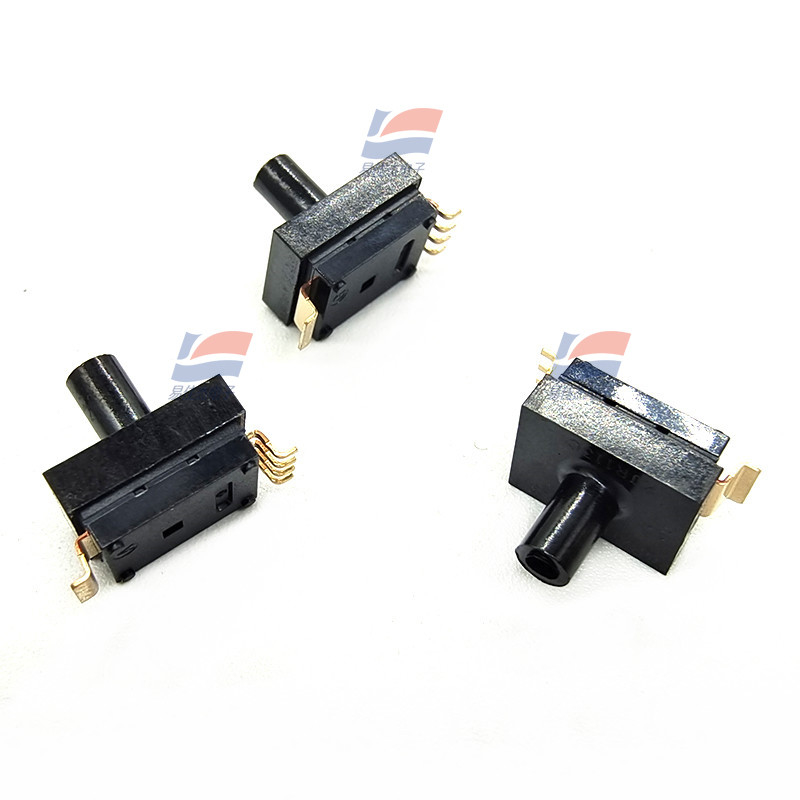

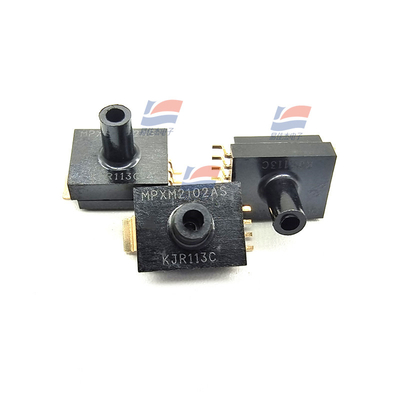

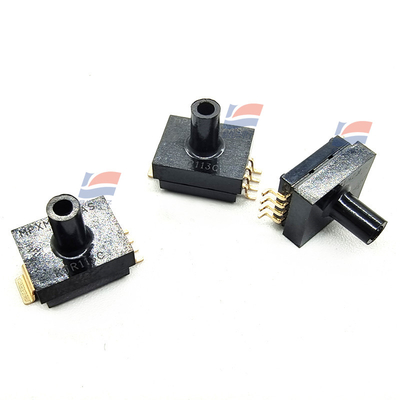

MPXM2102AS Board Interface Pressure Sensor Absolute SMD SMT Style
*The MPX2102 series devices are silicon piezoresistive pressure sensors providing a highly accurate and linear voltage output directly proportional to the applied pressure. The sensor is a single, monolithic silicon diaphragm with the strain gauge and a thin-film resistor network integrated on chip. *The chip is laser trimmed for precise span and offset calibration and temperature compensation.
Datasheet:
| Operating supply voltage | 10 V |
| Port Type | Single Axial Barbless |
| Package / Case | M-PAK-5 |
| Minimum operating temperature | - 40 C |
| Maximum operating temperature | + 125 C |
| Operating supply current | 6 mA |
| Port size | 0.117 in |
| Supply Voltage - Maximum | 16 V |
