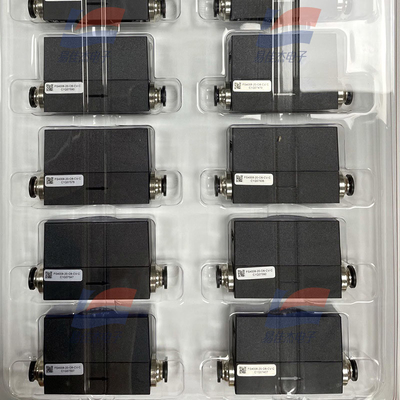

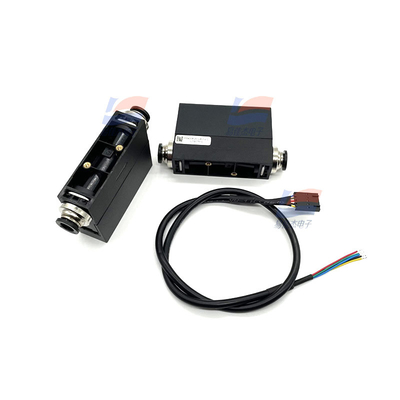

FS4008-30-O8-CV-A 50SLPM Gas Flow Sensor For Particle Counters Analytical Instruments

Product Description:

FS4008-30-O8-CV-A 50SLPM Gas Flow Sensor For Particle Counters Analytical Instruments​

Features:

FS4008 flow sensor, pipe diameter is 8mm, measuring range up to 50SLPM; Can be used for anesthesia equipment, clean gas detection, such as: air sampling machine, gas analyzer, etc

Product Features:

- Designed for low pressure gas flow measurement in pipes with diameter of 3mm and 8mm

- Support a variety of connection modes, easy to install and use

- The sensor chip adopts thermal mass flow measurement without temperature and pressure compensation to ensure the high precision measurement of the sensor

- Multi-sensor integration on a single chip, enabling a range ratio of 100:1 or higher

- The output mode is flexible. It can upload data actively through the communication interface or query the output data by the upper computer, and output linear analog voltage through the analog interface

- High zero stability, full range high stability, high accuracy and excellent repeatability

- Low power consumption, low pressure loss, fast response speed

Specifications:
