Product Details:
|
| Product Category: | Board Interface Pressure Sensor | Pressure Type: | Differential |
|---|---|---|---|
| Working Pressure: | - 500 Pa To 500 Pa | Accuracy: | 3 % |
| Highlight: | Differential Electronic Pressure Sensor,SDP810-500PA Digital Differential Pressure Sensor,I2C Digital Differential Pressure Sensor |
||

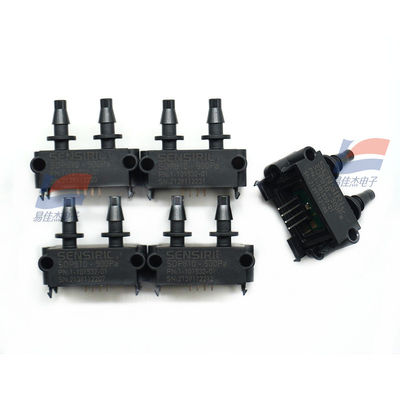

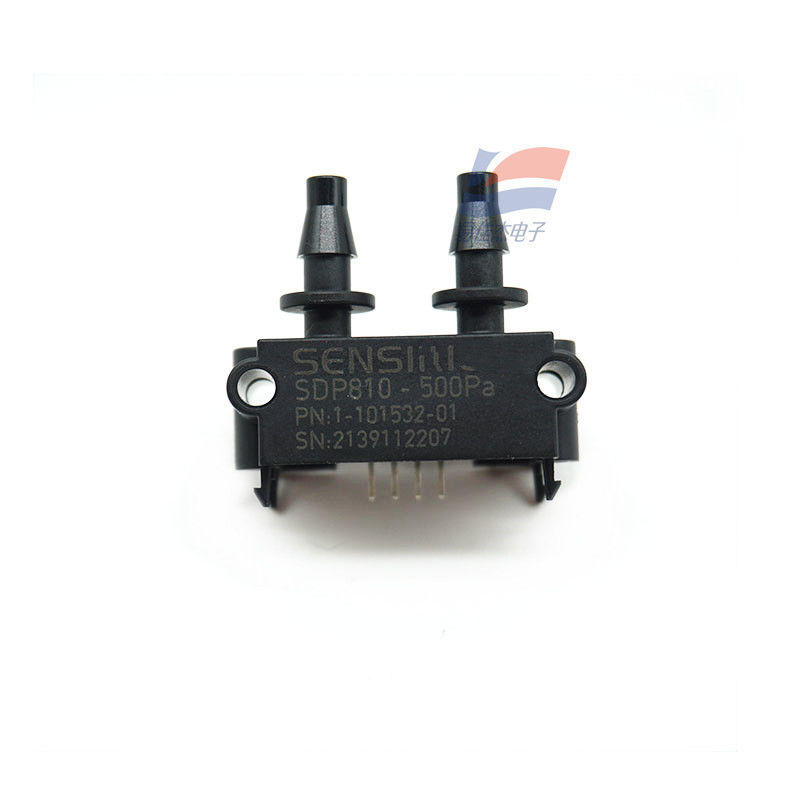

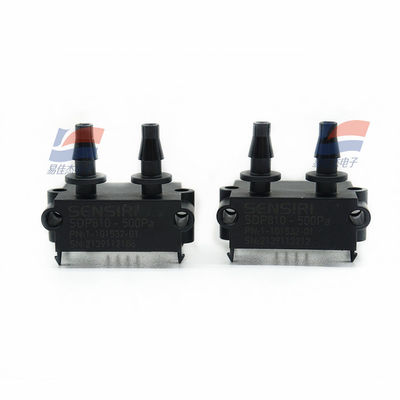

SDP810-500PA Digital Differential Pressure Sensor Excellent Repeatabilit
The SDP800 sensor family is Sensirion’s series of digital differential pressure sensors designed for high-volume applications.
The sensors measure the pressure of air and non-aggressive gases with superb accuracy and no offset drift. The sensors
cover a pressure range of up to ±500 Pa (±2 inch H2O / ±5 mbar) and deliver outstanding accuracy, also at the bottom end of
the measuring range.
Datasheet:
| Output Type | Digital |
| Mounting Style | Through Hole |
| Interface Type | I2C |
| Operating Supply Voltage | 2.7 V to 5.5 V |
| Port Type | Dual Axial Barbless |
| Resolution | 16 bit |
| Minimum operating temperature | - 40 C |
| Maximum operating temperature | + 85 C |
| Operating supply current | 3.8 mA |
| Supply Voltage - Maximum | 5.5 V |
| Supply Voltage - Min | 2.7 V |
