Product Details:
|
| Full Range Output: | 75±25mV | Zero Output: | ±25mV |
|---|---|---|---|
| Nonlinear: | ±0.3%F.S (typical Value) | Repeatability: | ±0.05%F.S (typical Value) |
| Highlight: | Oxygen Generator Electronic Pressure Sensor,MPS-3118-015GC Electronic Pressure Sensor,15psi Inserted Pressure Sensor |
||
Product Description:

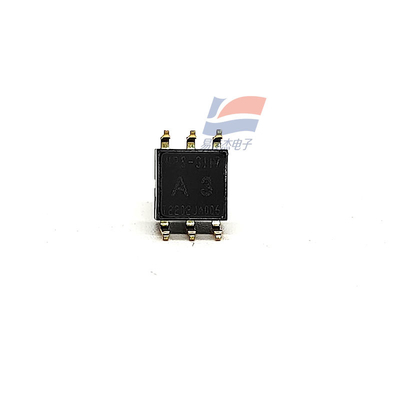

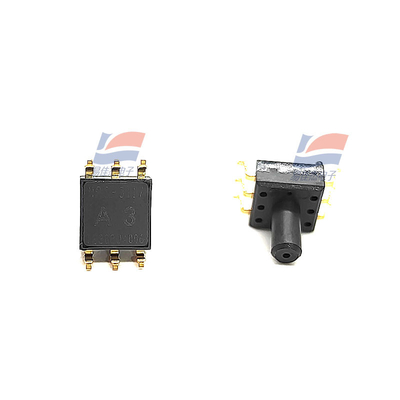

Pressure Sensor MPS-3118-015GC For Oxygen Generator Is Directly inserted At 15psi
Features:
1. DIP package with price advantage.
2. Width temperature operating range: -40 -- 85℃.
3. Solid state reliability.
4. Easy to use.
5. Easy to embed in OEM device.
6. Gauge pressure type (1, 5.8, 15, 30, 100 psi).
7. Overload capacity 2X
Applications: digital sphygmomanometer, digital pressure gauge, environmental monitoring, consumer electronics, sports (such as: waterproof watches, waterproof cameras, etc.), medical monitoring instruments, abandoned sphygmomanometer......
Full load pressure sensor MPS-3110 series is a 7 × 7 mm piezoresistive pressure sensor, which can be input by a constant voltage (5 Vdc) or a constant current (1, 1.5 mA), with excellent performance and long-term stability
Product features: 1. Surface adhesive packaging with price advantage.
2. Width temperature operating range: -40 -- 85℃.
3. Solid state reliability.
4. Easy to use.
5. Easy to embed in OEM device.
6. Gauge pressure type (1, 5.8, 15, 30, 100 psi).
7. Overload capacity 2X
Applications: digital sphygmomanometer, digital pressure gauge, environmental monitoring, consumer electronics, sports (such as: waterproof watches, waterproof cameras, etc.), medical monitoring instruments, abandoned sphygmomanometer.
Specifications:
| Operating voltage | 5VDC or 1.5mA |
| Full range output | 75±25mV |
| Zero output | ±25mV |
| Nonlinear | ±0.3%F.S (typical value) |
| Full-scale voltage temperature coefficient | -/+0.05%F.S/℃ or -/+0.21%F.S/℃ |
