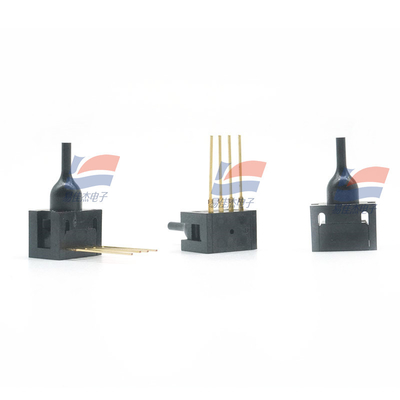

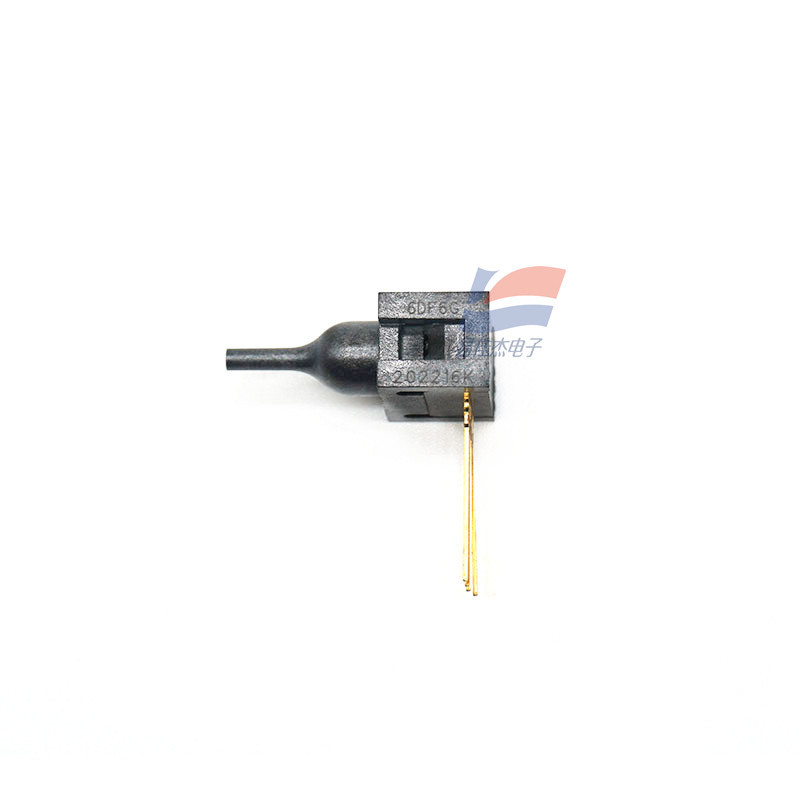

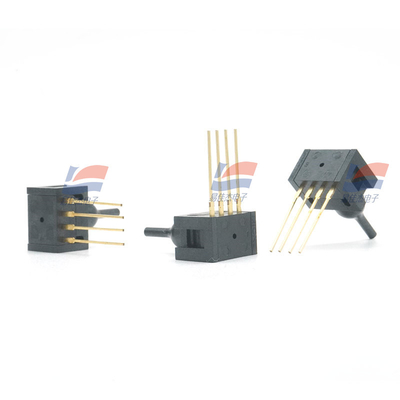

Board Mount 26PCDFJ6G Gauge Pressure Sensor Single Radial Barbed

Output type: Analog voltage

characteristic: Temperature compensation

Pressure type: Exhaust pressure gauge

Working pressure: 0.57PSI (3.92kPa)

Pressure Type: Vacuum, Gauge, Differential

Working pressure: 1 psi

Accuracy: 0.2 %

Output Type: Analog

Power supply: 5VDC

pressure range: 0--1PSI-- 500PSI

Output signal: 0.5-4.5 VDC

Operating temperature: -45℃- 125℃

Pressure sensitive chip: Silicon material

Lead: gold wire

Packaging case: PCB substrate and metal cover plate

Pin: gold plated

Working pressure range: 0.0 to 0.1806 psi (0.0 to 0.1271 m H2O)

Pressure type: differential pressure

Measurement techniques: Others

Measurement medium: gas
