Product Details:
|
| Product Type: | Board Mount Pressure Sensors | Pressure Type: | Vacuum, Gauge, Differential |
|---|---|---|---|
| Working Pressure: | 1 Psi | Accuracy: | 0.15 % |
| Highlight: | 10V Electronic Pressure Sensor,Dual Radial Barbless Electronic Pressure Sensor,24PCAFA6D Vacuum Pressure Sensor |
||

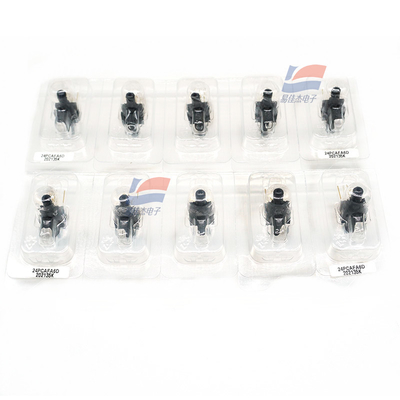

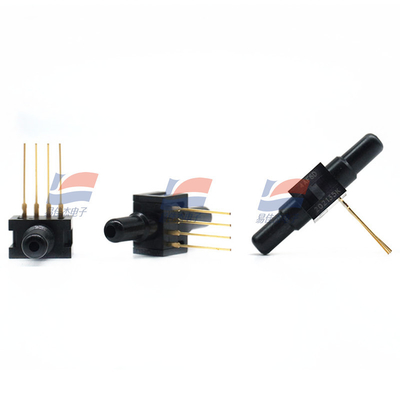

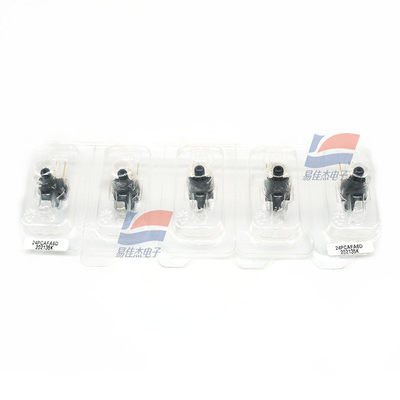

24PCAFA6D Vacuum 10V Electronic Pressure Sensor Dual Radial Barbless

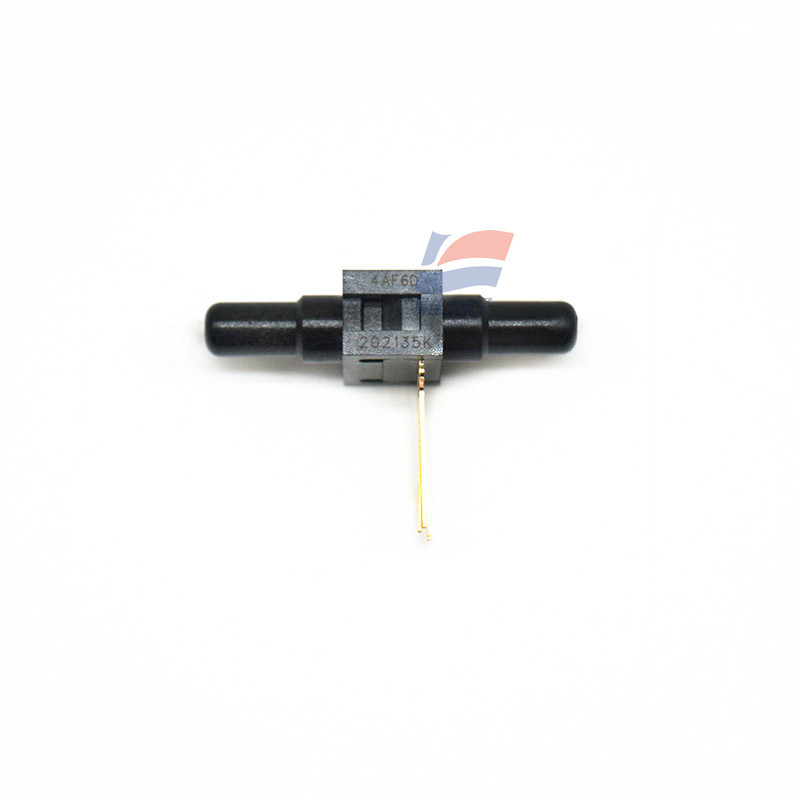

24PCAFA6D Vacuum Pressure Sensor Dual Radial Barbless
The 24PC Series Miniature Pressure Sensors are small, cost-effective devices intended for use with wet or dry media.
These sensors feature proven sensing technology that uses a specialized piezoresistive micromachined sensing element
to offer high performance, reliability, and accuracy. Each sensor contains four active piezoresistors that form a Wheatstone
bridge. When pressure is applied, the resistance changes and the sensor provides a milliVolt output signal that is
proportional to the input pressure.
Datasheet:
| Output Type | Analog |
| Installation Style | Through Hole |
| Working power supply voltage | 10 V |
| Package / Box | SIP-4 |
| Minimum working temperature | - 40 C |
| Maximum working temperature | + 85 C |
| Port size | 0.25 in |
| Unit weight | 2.500 g |
