Product Details:
|
| Highlight: | FS4008-20-O8-CV-C Medical Air Flow Sensor,100ms Medical Air Flow Sensor,FS4008-20-O8-CV-C Flow Air Pollution Sensor |
||
|---|---|---|---|

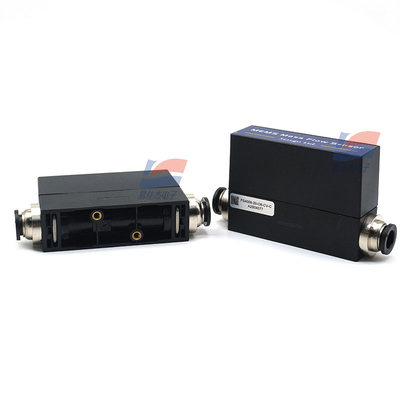

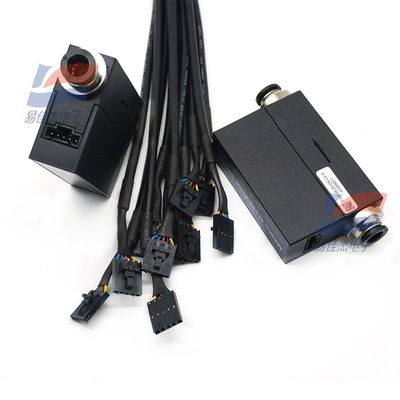

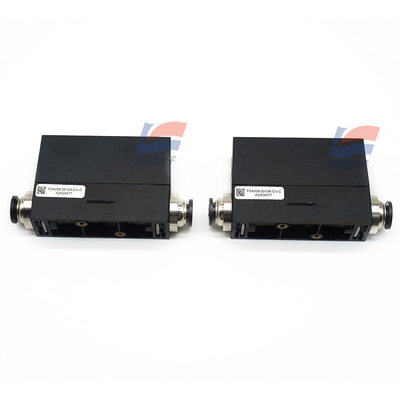

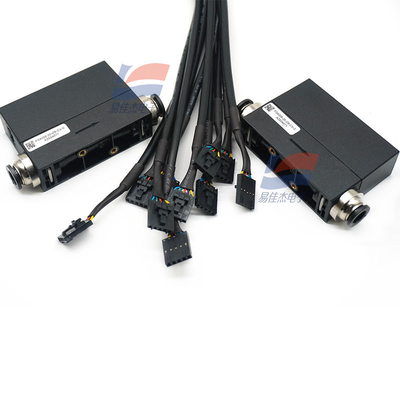

FS4008-20-O8-CV-C Medical Air Flow Sensor Easy To Install Flow Meter
FS4008-20-O8-CV-C Gas Quality Flow Sensor Easy To Install Flow Meter
FS400 series gas flow sensor is specially designed for the measurement and process control of various small flow gases. This series of flowmeters is made by the micro-electromechanical system (MEMS) flow sensor chip adopted by Guangzhou Hanchuan Instrument Co., Ltd., and is suitable for all kinds of clean and dry gases. The unique packaging technology enables it to measure different ranges of flow in the same pipe diameter. It is low in cost, easy to install, and does not require temperature and pressure compensation. It can replace traditional volumetric or differential pressure flow sensors and is equipped with a variety of signal outputs. , the flexible configuration and parameter query of the sensor can be realized through the communication interface.
Datasheet:
| Diameter | 8mm |
| Flow | 10, 20, 30, 40, 50SLPM |
| Turndown ratio | 100:1 |
| Accuracy | ±(1.5+0.2FS)% |
| Repeatability | 0.75 |
| Zero output drift | ±30 |
| Response time | 100ms |
| Working power | 8-18Vdc, 100mA |
| Working pressure | 0.5 MPa |
| Working temperature | -10 ~ +55 ℃ |
| Storage temperature | -20 ~ +65 ℃ |
