Product Details:
|
| Low Working Temperature: | - 40 ℃ ~ + 85 ℃ | Low Temperature Storage: | - 55 ℃ ~ + 125 ℃ |
|---|---|---|---|
| Low Temperature Compensation: | 18 ~ 63 ℃ | Series: | 160PC Series |
| Highlight: | 160PC Series Silicon Pressure Sensor,163PC01D75 Silicon Pressure Sensor,163PC01D75 Silicon Pressure Transducer |
||

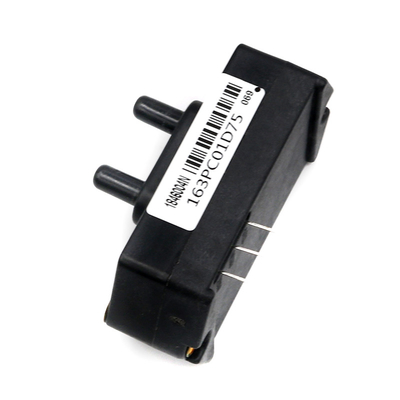

160PC Series Silicon Pressure Sensor With Amplification Compensation
160PC Series Silicon Pressure Sensor 163PC01D75 With Amplification Compensation And Calibration
Features:
160PC series pressure sensor features:
Micro pressure type (minimum up to 0.6kpa)
The PCB pin is on the opposite side of the measuring hole
Full signal processing (amplification, compensation, adjustment)
Environmental indicators:
Low working temperature: - 40 ℃ ~ + 85 ℃
Low temperature storage: - 55 ℃ ~ + 125 ℃
Low temperature compensation: 18 ~ 63 ℃
Impact: mil-std-202, method 213
Vibration: mil-std-202, method 204 (20g, 10~2000Hz)
Medium (P1&P2) : wet medium of P2 hole: polyester shell, epoxy silicone, borosilicate glass, and silicon-glass binder;P1 hole dry gas.
Technical specifications:
Min
Typical values:Max unit
The power supply: 6.00- 8.00VDC
The power supply current: 8.00- 20.0 mA
The power output: Zero offset (161/162/164pc)
Output under full pressure (161/162/164pc)
Specifications:
| Typical values | Max unit |
| power supply | 6.00- 8.00VDC |
| power supply current | 8.00- 20.0 mA |
| power output | power output |
