AG206-050KG Pressure Sensors Mounting Type SMD With ASIC Integrated

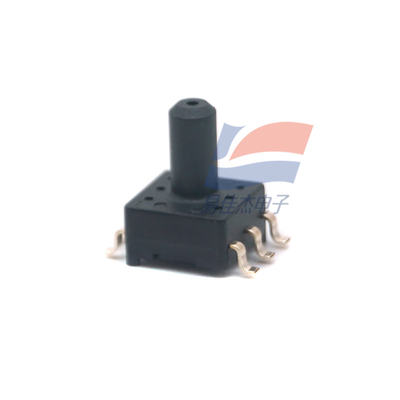

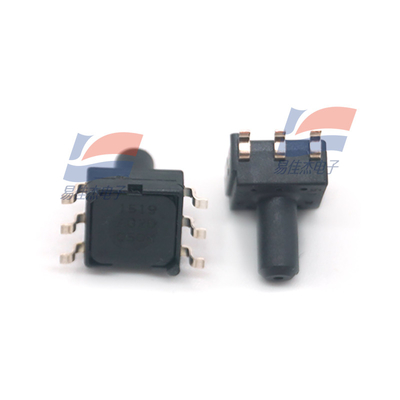

Large Image : AG206-050KG Pressure Sensors Mounting Type SMD With ASIC Integrated

Product Details:

Place of Origin:	Tecn
Brand Name:	Pressure Sensor
Model Number:	AG206-050KG

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Box
Delivery Time:	3-5Workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10000pcs/Month

Contact Now

AG206-050KG Pressure Sensors Mounting Type SMD With ASIC Integrated

Description

Type:	Electronic	Product Name:	Electronic Pressure Sensor
Power Supply:	10-30V DC	Housing Material:	Stainless Steel
Output Signal:	4-20mA	Response Time:	≤1ms
Weight:	200g	Connector Type:	M12
Highlight:	AG206-050KG Pressure Sensors , Pressure Sensors IP670KG Pressure Sensors , Pressure Sensors for Pressure Testing

AG206-050KG Pressure Sensors Mounting Type SMD With ASIC Integrated

Product Attributes: Customization is not available; this is a standardized, mass-produced pressure sensor.

Suitable Scenarios: Considering its pressure range and accuracy, it is highly suitable for applications such as small industrial equipment, electronic testing instruments, and pneumatic systems requiring precise monitoring of low to medium pressure.

Series Related: The AG206 series also includes models with different ranges such as 025KG and 100KG. The AG206-050KG is the mainstream model in this series with a 50kPa range.

Specification:

Measurement accuracy	±1.5% FS
Pressure range	50kPa
Sensor type	Semiconductor
Power supply voltage	3.0V, 3.3V, or 5.0VDC
Operating temperature	-40℃ - 125℃
Compensation temperature	0℃ - 85℃
Power consumption	3.3VDC

AG206-050KG Pressure Sensors Mounting Type SMD With ASIC Integrated 0
