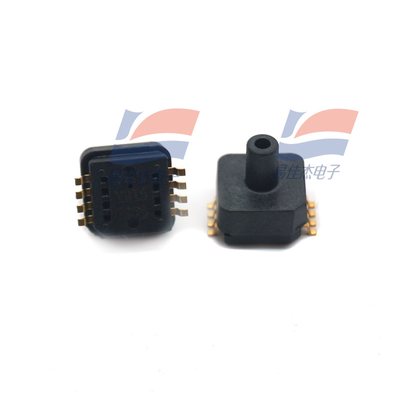

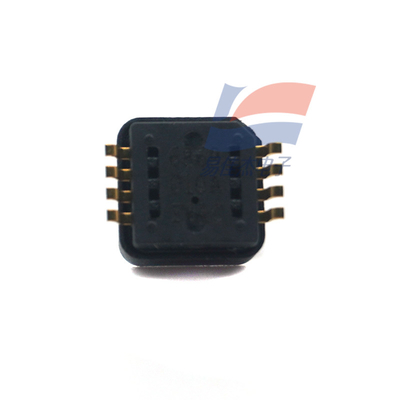

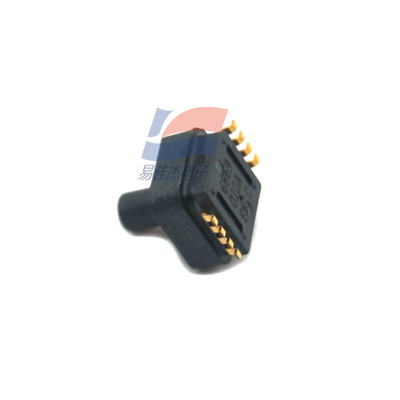

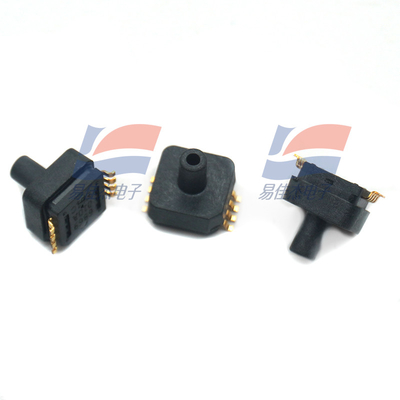

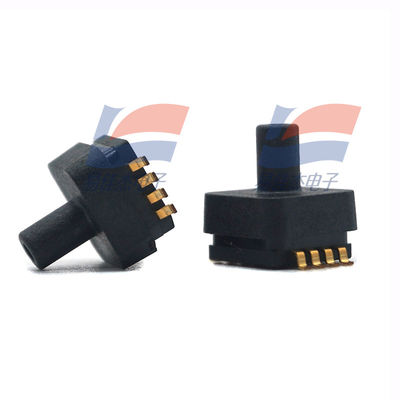

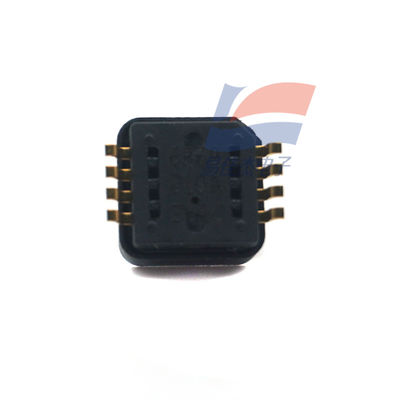

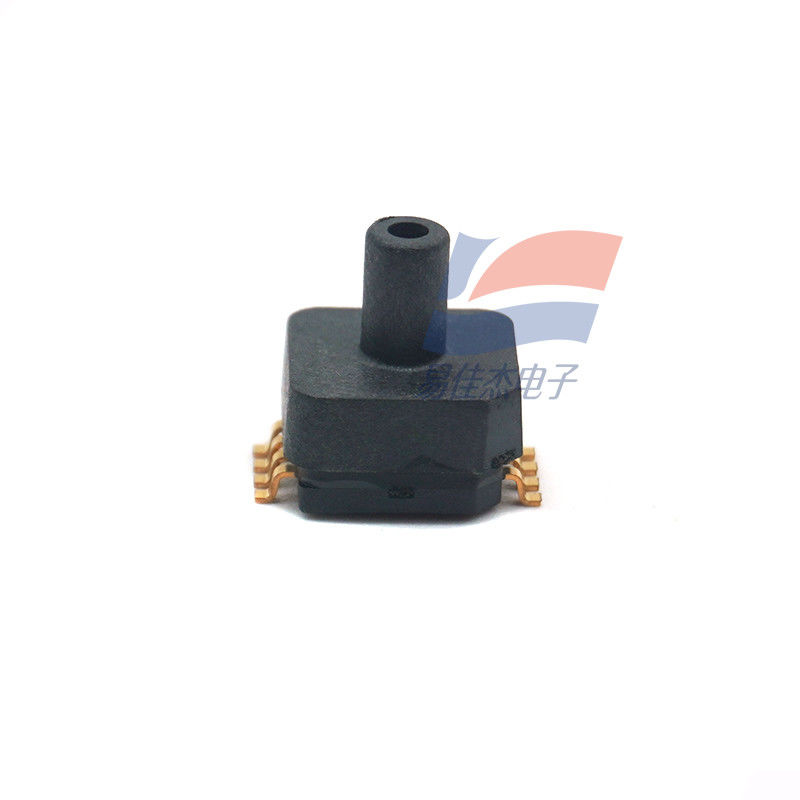

XGZP6869A005KPGL033 Gauge Pressure Sensors Board Mount Use For Automotive Electronic

Large Image : XGZP6869A005KPGL033 Gauge Pressure Sensors Board Mount Use For Automotive Electronic

Product Details:

Place of Origin:	XGZP
Brand Name:	Pressure Sensor
Model Number:	XGZP6869A005KPGL033

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Package
Delivery Time:	3-5workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	3000/pcs/month

Contact Now

XGZP6869A005KPGL033 Gauge Pressure Sensors Board Mount Use For Automotive Electronic

Description

Product Category:	Board Mount Pressure Sensors	Maximum Operating Temperature:	+85 Degrees Celsius
Port Size:	5 Mm	Operating Pressure:	0 Psi To 15 Psi
Minimum Operating Temperature:	-40 Degrees Celsius	Operating Supply Current:	6 MA
Pressure Type:	Gauge, Differential	Accuracy:	2%
Highlight:	2% Accuracy Gauge Pressure Sensors , Board Mount Gauge Pressure Sensors , XGZP6869A005KPGL033

XGZP6869A005KPGL033 Gauge Pressure Sensors Board Mount Use For Automotive Electronic

* Wide Ranges: -100kPa…0kPa…700kPa(show in Pressure Range Example)
* Gauge Pressure Type (Refer to XGZP6858A for Absolute Type)
* For Non-corrosive Gas or Air or Liquid
* Optional 5V and 3.3V Voltage
* Calibrated Amplified Analog Signal(Refer to XGZP6869D for I2C interface)
* Temp. Compensated: 0℃～+60℃(32℉～+140℉)
* Affordable Cost, Easy-to-use

APPLICATIONS
* Medical&Healthcare
* Industrial&Automation
* Domestic Appliance
* Consumer Electronic
* Automotive Electronic

Specification:

Available Pressure Range	-100…-5～0～5…700kpa
Power Supply	4.75-5.25Vdc
Current Consumption	2mA
Output Range	0.5～4.5Vdc
Total Accuracy	±2%FSS

XGZP6869A005KPGL033 Gauge Pressure Sensors Board Mount Use For Automotive Electronic 0
