142PC15D Board Mount Pressure Sensors Analog Output Dual Axial Barbless

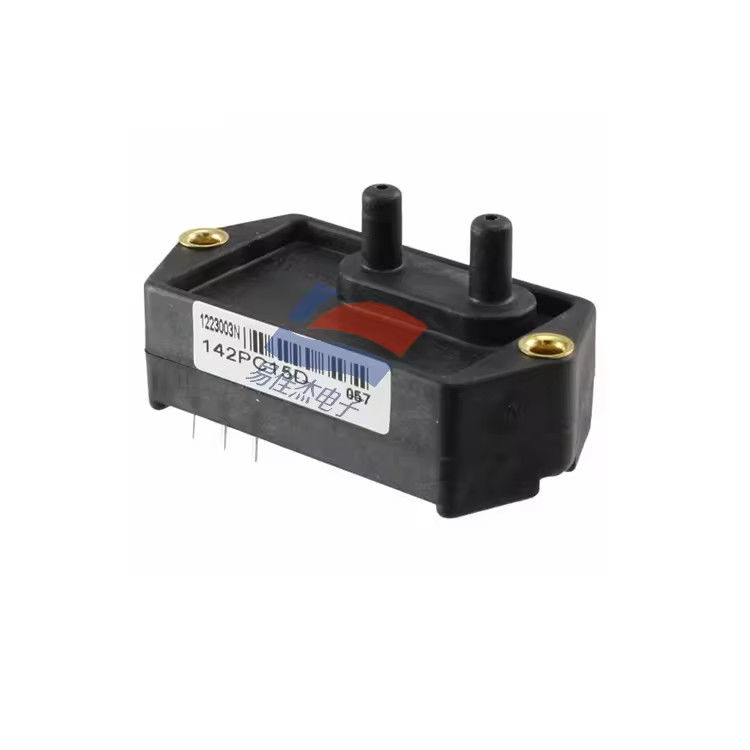

Large Image : 142PC15D Board Mount Pressure Sensors Analog Output Dual Axial Barbless

Product Details:

Place of Origin:	USA
Brand Name:	YJJ
Model Number:	142PC15D

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Package
Delivery Time:	3-5workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000PCS/Month

Contact Now

142PC15D Board Mount Pressure Sensors Analog Output Dual Axial Barbless

Description

Operating Supply Current:	8 MA	Maximum Operating Temperature:	+85 Degrees Celsius
Minimum Operating Temperature:	-40 Degrees Celsius	Output Voltage:	1 V To 6 V
Product Category:	Board Mount Pressure Sensors	Operating Pressure:	0 Psi To 15 Psi
Mounting:	Through Hole	Package/Case:	SIP-3
Highlight:	SIP-3 Through Hole Pressure Sensor , 1-6V Through Hole Pressure Sensor , 142PC15D Pressure Sensor

142PC15D Board Mount Pressure Sensors Analog Output Dual Axial Barbless

Amplified pressure sensors are 10096 tested to insure that the maximum nuf and sensitivity temperature shift does not
exceed the specification.The diagram below illustrates how null and sensitivity shift relates to temperature, Note that the
maximum shift occurs at temperature ex tremes.Therefore,if a sensor is not exposed to the entire temperature range the maximum null and sensitivity shift will actually be less than the value specified.
This diagram indicatesthetemperature shift pertaining to a few listings. Maximum null and sensitivity shift varies from listing to listing.

Specification:

Pressure Type	Gauge, Differential
Operating Pressure	0 psi to 15 psi
Accuracy	0.25 %
Output Type	Analog
Mounting Style	Through Hole
Port Type	Dual Axial Barbless
Package / Case	SIP-3
Minimum Operating Temperature	- 40℃
Maximum Operating Temperature	+ 85℃
Operating Supply Current	8 mA
Output Voltage	1 V to 6 V
Port Size	5 mm
Supply Voltage - Max	16 V

142PC15D Board Mount Pressure Sensors Analog Output Dual Axial Barbless 0
