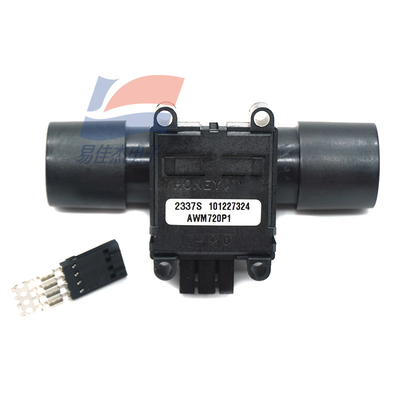

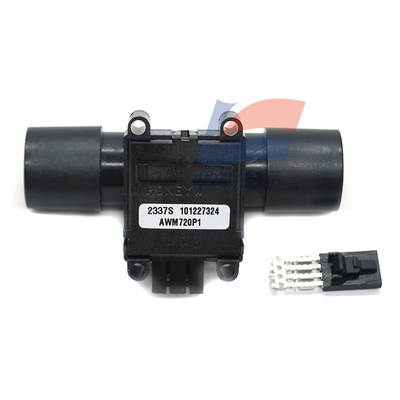

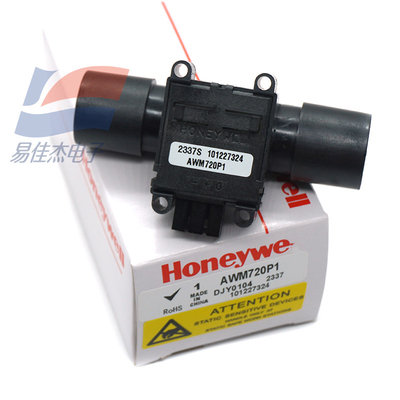

AWM720P1 Air Flow Sensor Dry Flow Sensor Precision Medical Air 5V Output Voltage

AWM720P1 Air Flow Sensor Dry Flow Sensor Precision Medical Air 5V Output Voltage
AWM720P1 Air Flow Sensor Dry Flow Sensor Precision Medical Air 5V Output Voltage AWM720P1 Air Flow Sensor Dry Flow Sensor Precision Medical Air 5V Output Voltage AWM720P1 Air Flow Sensor Dry Flow Sensor Precision Medical Air 5V Output Voltage

Large Image :  AWM720P1 Air Flow Sensor Dry Flow Sensor Precision Medical Air 5V Output Voltage

Product Details:
Place of Origin: USA
Brand Name: YJJ
Model Number: AWM720P1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Standard Package
Delivery Time: 3-5Workingdays
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Contact Now

AWM720P1 Air Flow Sensor Dry Flow Sensor Precision Medical Air 5V Output Voltage

Description
Product Category: Flow Sensor Range: 200 Sec/min
Operating Supply Voltage: 8 V To 15 V Accuracy: 0.5%
Output Voltage: 5 V Port Size: 22 Mm
Minimum Operating Temperature: - 25 Degrees Celsius Supply Voltage - Minimum: 8 V
Highlight:

AWM720P1 Medical Air Flow Sensor

,

0.5% Medical Air Flow Sensor

,

5V Medical Air Flow Sensor

AWM720P1 Air Flow Sensor Dry Flow Sensor Precision Medical Air 5V Output Voltage



The AWM700 Series, Compensated/Amplified Airflow Sensors provide in-line flow measurement with a specially designed
bypass flow housing. These sensors measure flow as high as 300 standard liters per minute (SLPM) while inducing a typical pressure drop of 1 inH2O.
The AWM700 has a high flow range capability in a small package, as well as a 6 ms response time. These sensors require a 10 Vdc supply, but consume only 60 mW of power.





Specification:

For use with Dry Gas
Range 200 SLPM
Accuracy 0.5%
Output voltage 5 V
Operating supply voltage 8 V to 15 V
Port size 22 mm
Case material Silicon
Maximum operating temperature +85°C
Minimum operating temperature -25°C
Maximum supply voltage 15 V
Minimum supply voltage 8 V
Unit weight 34 g



AWM720P1 Air Flow Sensor Dry Flow Sensor Precision Medical Air 5V Output Voltage 0
