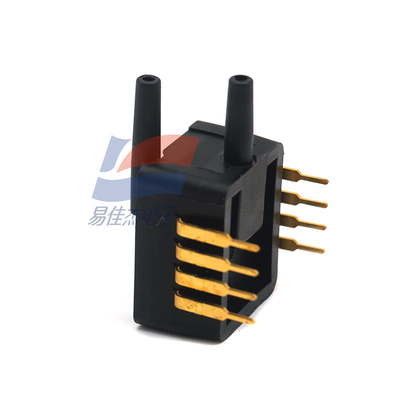

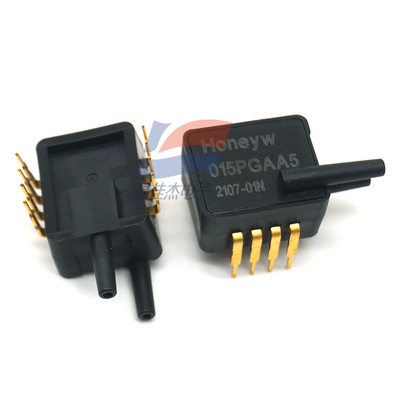

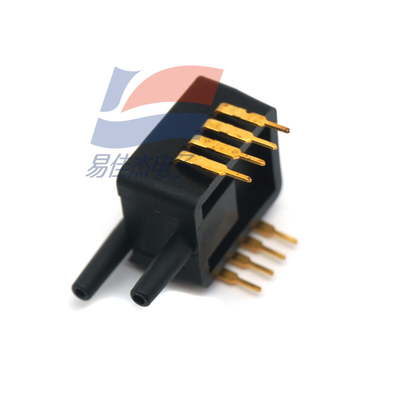

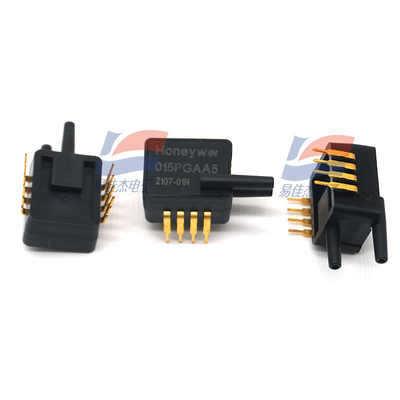

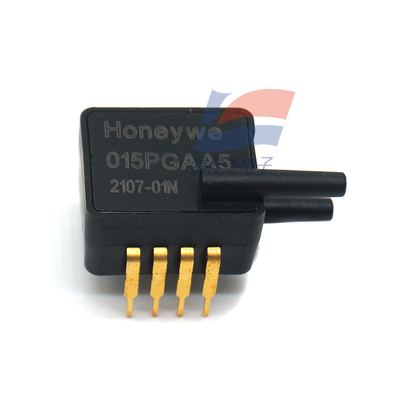

ASDXRRX015PGAA5 Board Mount Pressure Sensors Dual Radial Barbless

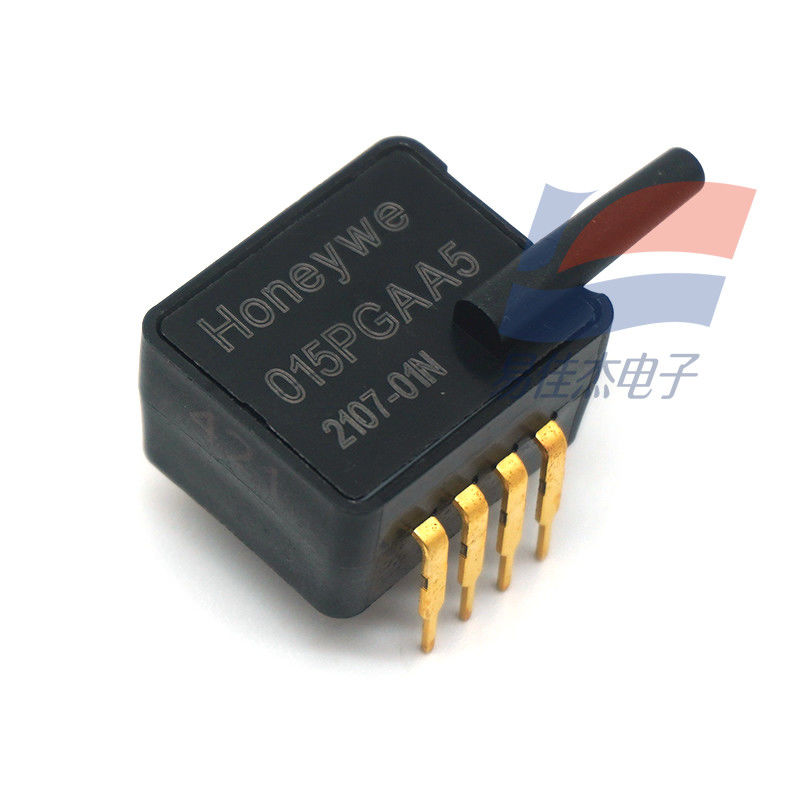

Large Image : ASDXRRX015PGAA5 Board Mount Pressure Sensors Dual Radial Barbless

Product Details:

Place of Origin:	USA
Brand Name:	YJJ
Model Number:	ASDXRRX015PGAA5

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Package
Delivery Time:	3-5workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10000pcs/Month

Contact Now

ASDXRRX015PGAA5 Board Mount Pressure Sensors Dual Radial Barbless

Description

Maximum Operating Temperature:	+105 Degrees Celsius	Minimum Operating Temperature:	-20 Degrees Celsius
Product Category:	Board Mount Pressure Sensors	Mounting Style:	Through Hole
Accuracy:	2%	Operating Pressure:	15 Psi
Supply Voltage:	Minimum: 3V	Port Type:	Dual Radial Barbless
Highlight:	15 Psi Through Hole Pressure Sensor , Board Mount Pressure Sensor , ASDXRRX015PGAA5

ASDXRRX015PGAA5 Board Mount Pressure Sensors Dual Radial Barbless

Low Pressure And Ultra Low Pressure Analog Output ±2% Total Error Band 10 Inches H2O to 100psi

FEATURES
* Ratiometric 12-bit analog output
* Precision ASIC conditioning and temperature
compensated over 0 °C to 85 °C [32 °F to 185 °F] temperature range
* Low operating voltage
* Absolute, differential and gage types
* Pressure ranges from 10 inches H20 to 100 psi
* Standard calibrations in inches H20, cm H20, psi, mbar, bar, kPa
* Total error band of ±2.0% of full scale span maximum
* RoHS compliant

POTENTIAL APPLICATIONS
* Flow calibrators
* Ventilation and air flow monitors
* Gas flow instrumentation
* Sleep apnea monitoring and therapy equipment
* Barometry
* Pneumatic controls
* HVAC

Specification:

Pressure Type	Gauge
Operating Pressure	15 psi
Accuracy	2 %
Output Type	Analog
Operating Supply Voltage	5 V
Port Type	Dual Radial Barbless
Package / Case	DIP-8
Minimum Operating Temperature	- 20℃
Maximum Operating Temperature	+ 105℃
Supply Voltage - Max	6 V
Supply Voltage - Min	3 V

ASDXRRX015PGAA5 Board Mount Pressure Sensors Dual Radial Barbless 0
