Product Details:
|
| Response Time: | 2.5mS | Available Pressure Range: | 0-100…700kPa |
|---|---|---|---|
| Long Term Stability: | ±0.5%Span | Compensation Temp: | 0~60℃/F |
| Power Supply: | 5/3.3Vdc | Accuracy: | ±2.5%Span |
| Output Range: | 0.5~4.5/0.2~2.7Vdc | Burst Pressure: | 3XRated |
| Highlight: | 2.5mS Electronic Pressure Sensor,Precision Electronic Pressure Sensor,XGZP6858A15115 |
||

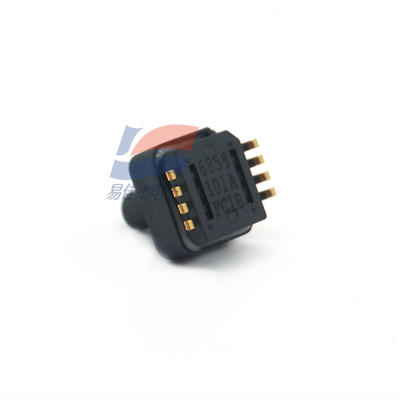

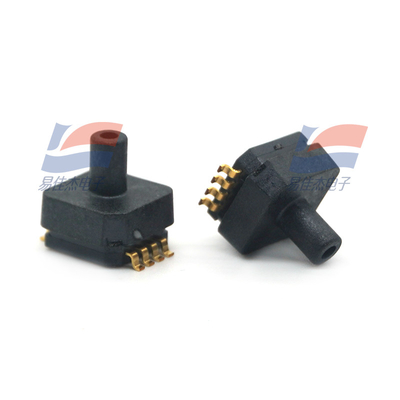

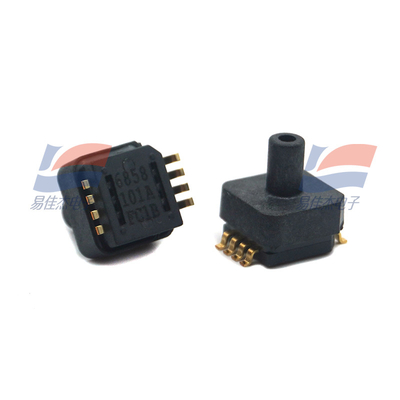

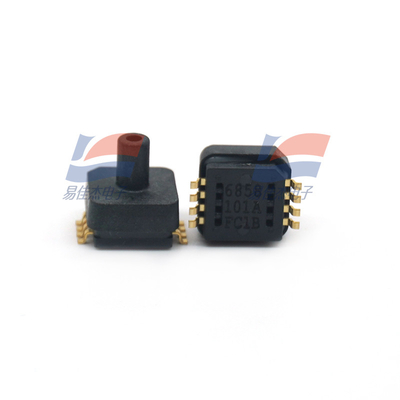

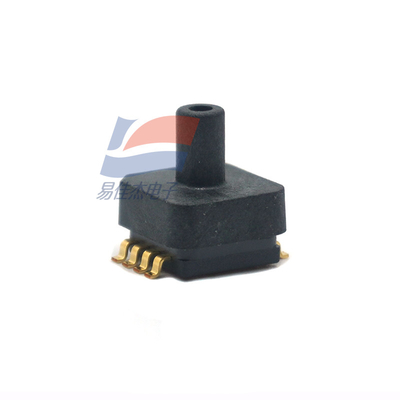

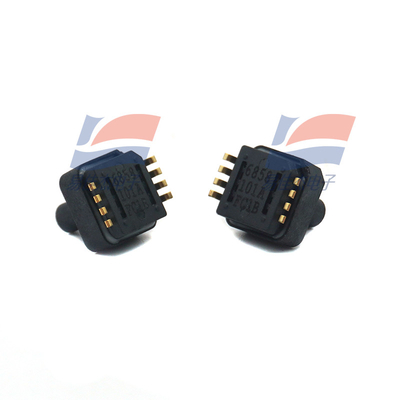

The Electronic Pressure Sensor is a DIP-8 package board interface pressure sensor that is easy to install and use. It is designed to be compatible with most microcontrollers and can be easily integrated into any electronic system. The pressure sensor is also equipped with an overpressure protection feature that allows it to withstand pressures up to 2X rated without sustaining any damage.
The Electronic Pressure Sensor is capable of operating in temperatures ranging from -30~100℃/F, making it suitable for use in extreme environments. The sensor is also equipped with a compensation temperature range of 0~60℃/F, which allows it to provide accurate readings even when the temperature fluctuates.
The maximum excitation current for the Electronic Pressure Sensor is 3mA, which makes it an energy-efficient product. It is designed to consume minimal power and can operate on low voltage, making it an ideal choice for use in battery-powered applications.
The Electronic Pressure Sensor is highly stable and provides long-term accuracy. Its long-term stability is ±0.5%Span, which ensures that it provides accurate readings consistently over time. This feature makes it an ideal choice for applications that require long-term stability and accuracy, such as industrial control systems.
In summary, the Electronic Pressure Sensor is a highly reliable and accurate product that provides precise pressure measurements for a wide range of applications. Its overpressure protection feature, DIP-8 package board interface, and compatibility with most microcontrollers make it easy to install and use. Its ability to operate in extreme temperatures, energy-efficient design, and long-term stability make it an ideal choice for a variety of applications, including industrial, automotive, and aerospace.
| Technical Parameter | Value |
|---|---|
| Available Pressure Range | 0-100…700kPa |
| Long Term Stability | ±0.5%Span |
| Compensation Temp | 0~60℃/F |
| Burst Pressure | 3XRated |
| Operating Temp | -30~100℃/F |
| Response Time | 2.5mS |
| Max. Excitation Current | 3mA |
| Output Range | 0.5~4.5/0.2~2.7Vdc |
| Power Supply | 5/3.3Vdc |
| Over Pressure | 2XRated |
This Electronic Pressure Sensor product is a board interface pressure sensor that comes in tube packing and is an analog type.
The differential pressure sensor is used in applications where the pressure difference between two points needs to be measured. This type of sensor is ideal for applications such as airflow and liquid flow measurement, filter monitoring, and level measurement. The CF XGZP6858A15115KPAL033 electronic pressure sensor is a differential pressure sensor that provides reliable and accurate data on the pressure difference between two points.
The CF XGZP6858A15115KPAL033 electronic pressure sensor is designed with the DIP-8 package, which is a small and compact package that makes it easy to install and use. The product has a maximum excitation current of 3mA and a response time of 2.5mS. The available pressure range for the product is 0-100…700kPa, and it has an operating temperature range of -30~100℃/F. Additionally, the product has an overpressure of 2XRated, which ensures that it can handle high-pressure applications without damage or failure.
The CF XGZP6858A15115KPAL033 electronic pressure sensor is perfect for a wide range of applications, including but not limited to, HVAC systems, pneumatic systems, and hydraulic systems. It is also ideal for use in medical equipment, such as respiratory monitors and blood pressure monitors. Its small size and accurate measurements make it easy to integrate into any system, and its dual radial barbless design ensures that it can be easily installed and maintained.
Customize your CF Electronic Pressure Sensor (Model Number: XGZP6858A15115KPAL033) to meet your specific needs:
This DIP-8 sensor is of differential type and has been manufactured in China. It can be customized to your specific needs and comes in tube packing for added convenience.
Product Packaging:
Shipping:
Here are some frequently asked questions about CF's Electronic Pressure Sensor:
Q: What is CF's Electronic Pressure Sensor?
A: CF's Electronic Pressure Sensor is a device that measures the pressure of a fluid or gas and converts it into an electrical signal that can be read by a computer or other electronic device.
Q: What is the model number of CF's Electronic Pressure Sensor?
A: The model number is XGZP6858A15115KPAL033.
Q: Where is CF's Electronic Pressure Sensor made?
A: CF's Electronic Pressure Sensor is made in China.
Q: What are the applications of CF's Electronic Pressure Sensor?
A: CF's Electronic Pressure Sensor can be used in a variety of applications, including automotive, aviation, industrial, and medical.
Q: What is the accuracy of CF's Electronic Pressure Sensor?
A: The accuracy of CF's Electronic Pressure Sensor is +/- 0.5% of full scale.
