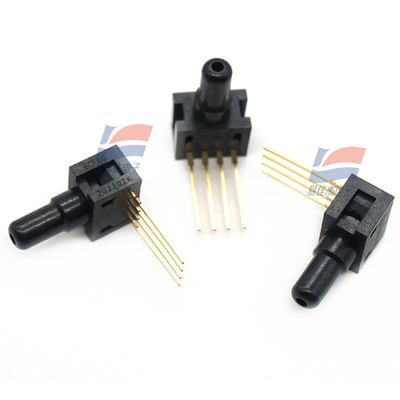

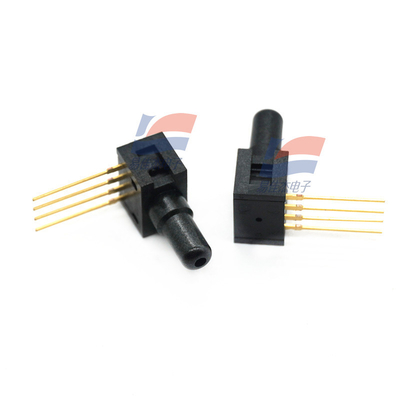

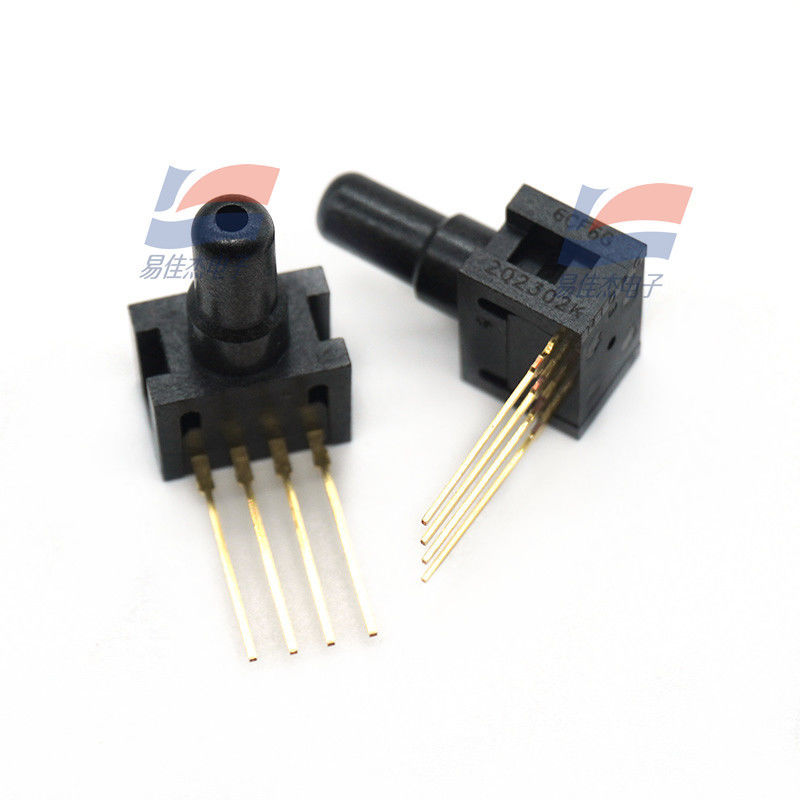

26PCCFA6G Board Mount Pressure Sensors Through Hole SIP4 Single Axial Barbless

26PCCFA6G Board Mount Pressure Sensors Through Hole SIP4 Single Axial Barbless

Miniature Low Pressure Sensors
The 26PC Series Miniature Pressure Sensors are small, cost-effective devices intended for use with wet or dry media.
These sensors feature proven sensing technology that uses a specialized piezoresistive micromachined sensing element
to offer high performance, reliability, and accuracy. Each sensor contains four active piezoresistors that form a Wheatstone
bridge. When pressure is applied, the resistance changes and the sensor provides a milliVolt output signal that is
proportional to the input pressure.
The low power 26PC sensors are designed to accommodate pressures from 1 psi to 250 psi and have an operating
temperature range of -40 ºC to 85 ºC [-40 ºF to 185 ºF].

Specification:
