26PCFFA2G Board Mount Pressure Sensors Gauge 100psi Through Hole DIP4 Package

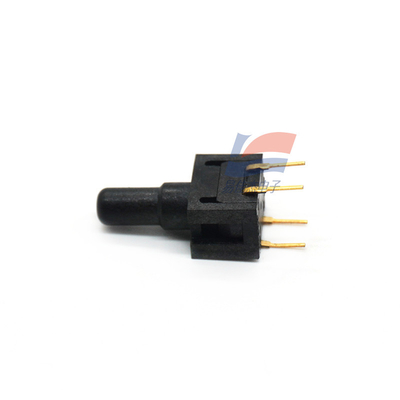

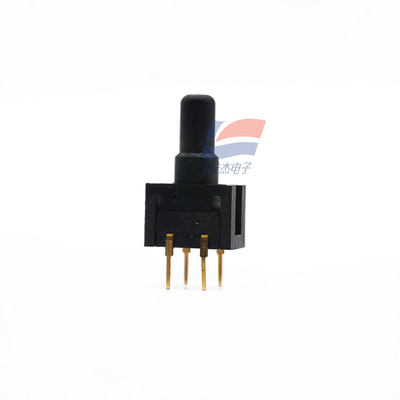

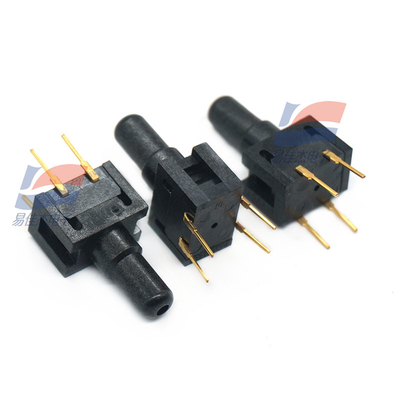

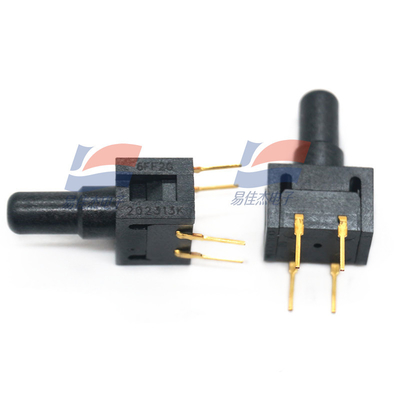

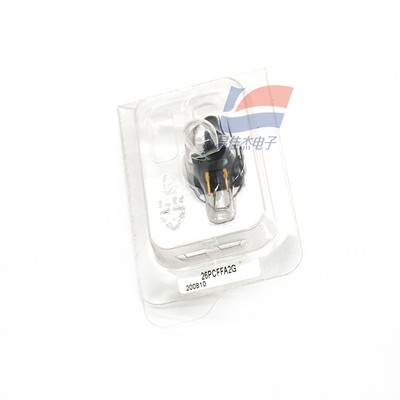

Large Image : 26PCFFA2G Board Mount Pressure Sensors Gauge 100psi Through Hole DIP4 Package

Product Details:

Place of Origin:	USA
Brand Name:	YJJ
Model Number:	26PCFFA2G

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Package
Delivery Time:	3-5workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	2000pcs/Month

Contact Now

26PCFFA2G Board Mount Pressure Sensors Gauge 100psi Through Hole DIP4 Package

Description

Package / Case:	DIP-4	Minimum Operating Temperature:	- 40 C
Mounting Style:	Through Hole	Operating Pressure:	100 Psi
Accuracy:	0.4%	Port Size:	0.2 In
Supply Voltage:	Min: 10 V	Output Type:	Analog
Highlight:	26PCFFA2G Electronic Pressure Sensor , 100 Psi Electronic Pressure Sensor , DIP-4 Package Electronic Pressure Sensor

26PCFFA2G Board Mount Pressure Sensors Gauge 100psi Through Hole DIP4 Package

The 26PC Series Miniature Pressure Sensors are small, cost-effective devices intended for use with wet or dry media.
These sensors feature proven sensing technology that uses a specialized piezoresistive micromachined sensing element
to offer high performance, reliability, and accuracy. Each sensor contains four active piezoresistors that form a Wheatstone
bridge. When pressure is applied, the resistance changes and the sensor provides a milliVolt output signal that is
proportional to the input pressure.

Pressure Type	Gauge, Differential
Accuracy	0.4 %
Output Type	Analog
Mounting Style	Through Hole
Operating Supply Voltage	10 V
Port Type	Single Axial Barbless
Minimum Operating Temperature	- 40℃
Maximum Operating Temperature	+ 85℃
Supply Voltage - Max	16 V
Supply Voltage - Min	10 V

26PCFFA2G Board Mount Pressure Sensors Gauge 100psi Through Hole DIP4 Package 0
