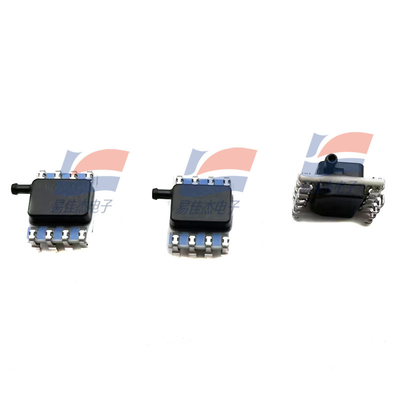

SSCMRNN015PASA5 Board Mount Pressure Sensors Absolute Digital Output

SSCMRNN015PASA5 Board Mount Pressure Sensors Absolute Digital Output

FEATURES
*Industry-leading long-term stability
*Extremely tight accuracy of 0.25% FSS BFSL (Full Scale
*Span Best Fit Straight Line)
*Total error band of 2% full scale span maximum
*Modular and flexible design offers customers a variety of package styles and options, all with the same industryleading performance specifications
*Miniature 10 mm x 10 mm [0.39 in x 0.39 in] package
*Low operating voltage
*Extremely low power consumption
*I2C- or SPI- compatible 14-bit digital output (min. 12-bit sensor resolution)
*Precision ASIC conditioning and temperature compensated over -20 C to 85 C [-4 F to 185 F] temperature range
*RoHS compliant
*Virtually insensitive to mounting orientation
**Internal diagnostic functions increase system reliability
*Also available with analog output
*Absolute, differential, and gage types
*Pressure ranges from 1 psi to 150 psi (60 mbar to 10 bar)
*Custom calibration available
*Various pressure port options
*Liquid media option

POTENTIAL APPLICATIONS
Medical:
- Airflow monitors
- Anesthesia machines
- Blood analysis machines
- Gas chromatography
- Gas flow instrumentation
- Kidney dialysis machines
- Oxygen concentrators
- Pneumatic controls
- Respiratory machines
- Sleep apnea equipment
- Ventilators

Industrial:
- Barometry
- Flow calibrators
- Gas chromatography
- Gas flow instrumentation
- HVAC
- Life sciences
- Pneumatic controls

Specification:
