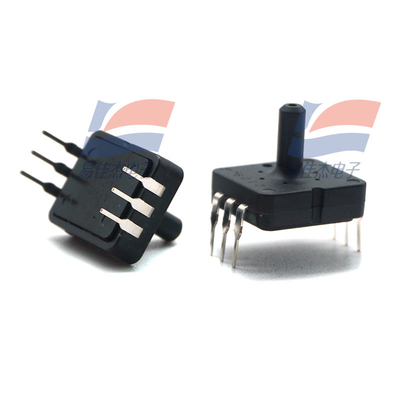

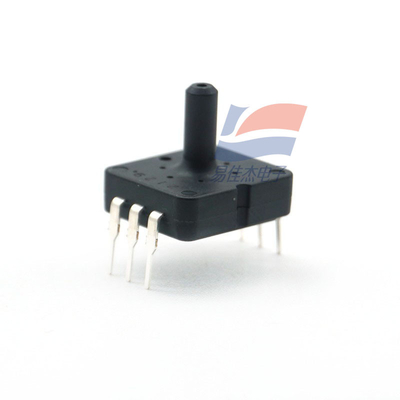

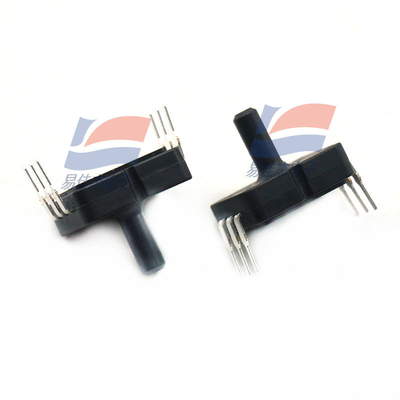

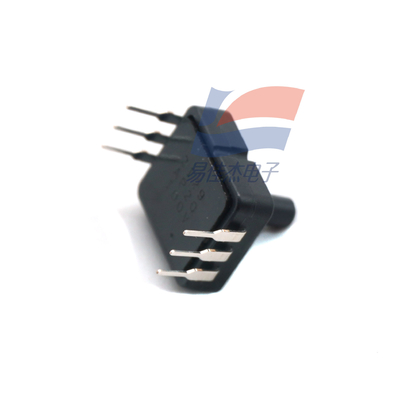

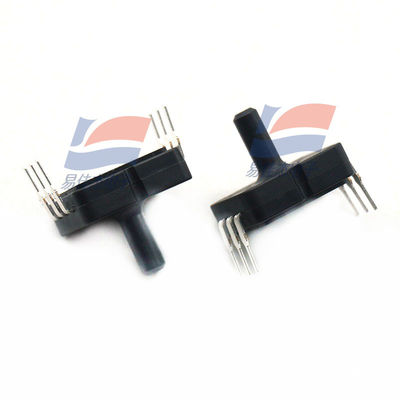

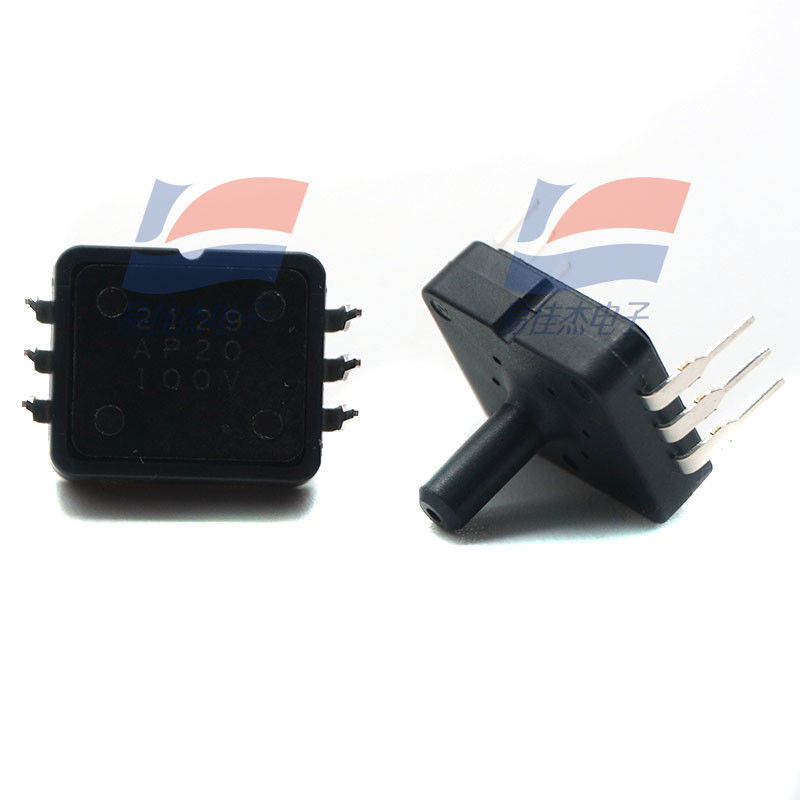

AP20R-100KV -100kPa Pressure Sensor Analog Output High Accuracy Semiconductor

AP20R-100KV -100kPa Pressure Sensor Analog Output High Accuracy Semiconductor

Description
The AP2 pressure sensor series is composed of a silicon piezoresistive pressure sensing chip and a signal conditioning integrated circuit. The low-level signal from the sensing chip is amplified, temperature compensated, calibrated and finally converted to a
high level analog output voltage that is proportional with the applied pressure. The AP2 series measures gauge pressure.

Features
* Amplified and temperature compensated analog output
* High accuracy ±1.5 %FS
* Supply voltage 3.0, 3.3 & 5.0 Vdc
* Low supply current Max 2 mA at 3.3 Vdc
* Operating temperature -40 to 125℃
* Wide compensated temperature 0 to 85℃
* Pins & Package compatible with Fujikura’s XFPM integrated pressure sensor
* Customization available

Applications
* Battery-operated Devices
* Medical Devices
* Industrial Pneumatic Devices
* Consumer Devices

Specification:
