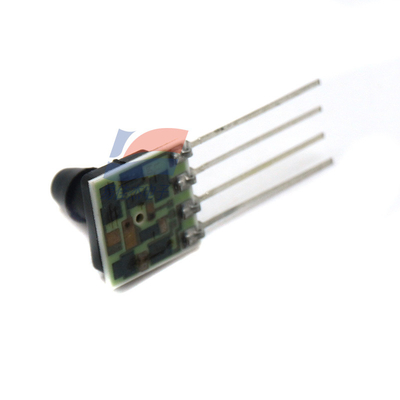

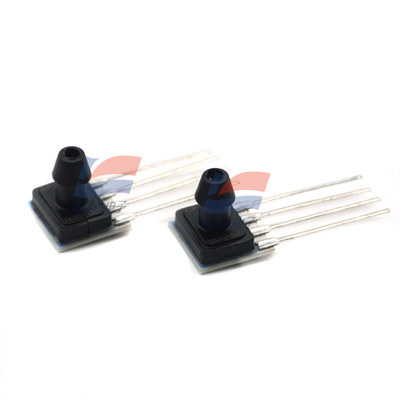

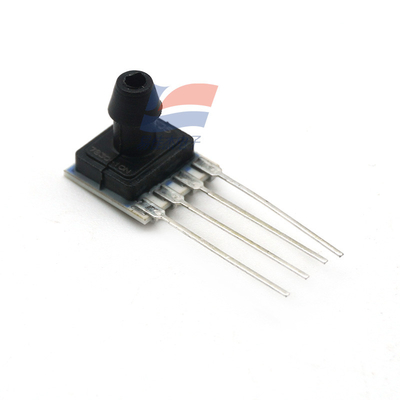

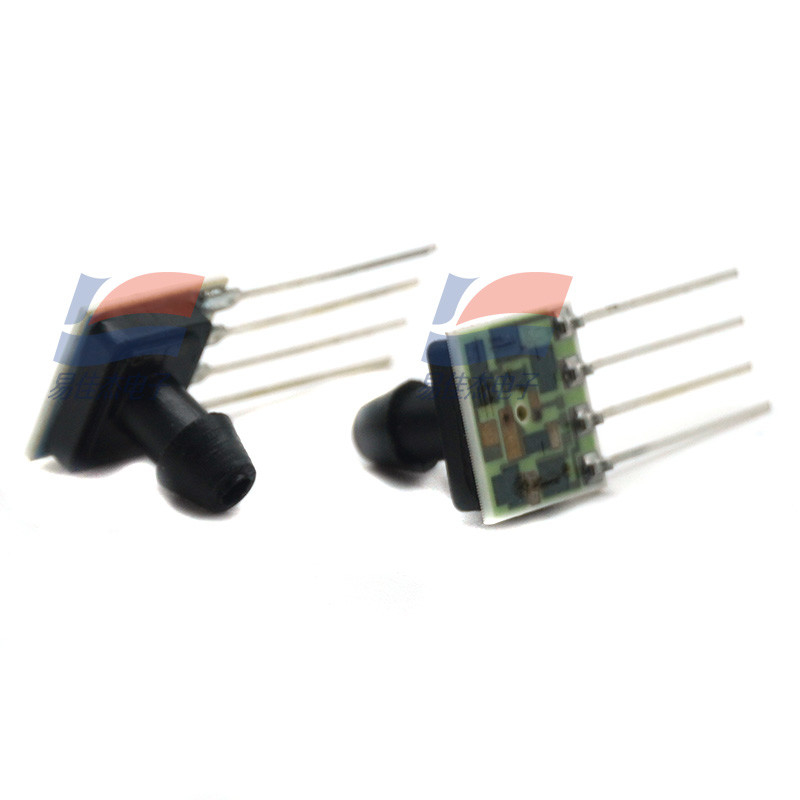

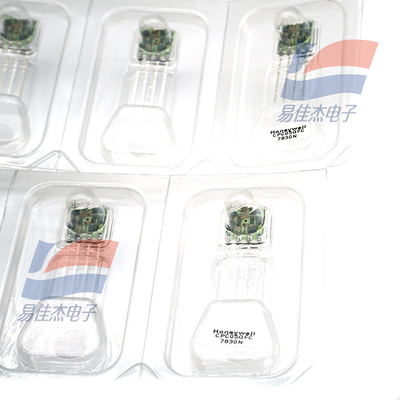

CPC05GFC Board Mount Pressure Sensor Compensated Calibrated Silicon Small Size

Large Image : CPC05GFC Board Mount Pressure Sensor Compensated Calibrated Silicon Small Size

Product Details:

Place of Origin:	USA
Brand Name:	YJJ
Model Number:	CPC05GFC

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Package
Delivery Time:	3-5workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact Now

CPC05GFC Board Mount Pressure Sensor Compensated Calibrated Silicon Small Size

Description

Output:	0mV～60mV(12V)	Operating Temperature:	-25℃～85℃
Voltage - Power Supply:	3V～16V	Features Temperature:	Compensated
Maximum Pressure:	15 Psi	Pressure Type:	Ventilated Pressure Gauge
Accuracy:	±2%
Highlight:	CPC05GFC Pressure Gauge Sensor , Compensated Temperature Pressure Gauge Sensor , 3V-16V Pressure Gauge Sensor

CPC05GFC Board Mount Pressure Sensor Compensated Calibrated Silicon Small Size

FEATURES
• Low cost, small size
• Temperature compensated
• Zero and span calibrated
• Millivolt output
• Differential, gage and absolute pressure
• Constant voltage excitation
• High impedance - low current

POTENTIAL APPLICATIONS
• Medical applications
• Applications requiring small size
• Applications requiring vacuum and positive
• Pressure reference, or both

Specification:

Applications	Board Mount
Pressure Type	Vented Gauge
Operating Pressure	5PSI (34.47kPa)
Output Type	Wheatstone Bridge
Output	0 mv~ 60 mv (12V)
Accuracy	±2%
Voltage -supply	3V~16V
Port Size Male	-0.15"(3.8mm)Tube
Port style	Barbed
Features	Temperature compensated
Termination Style	PC Pin

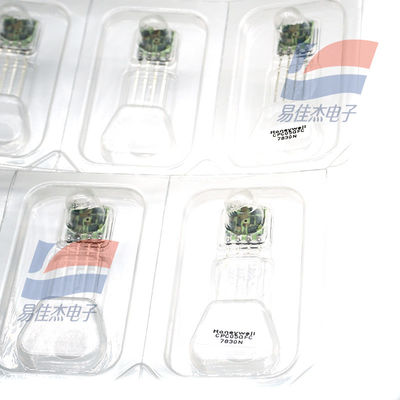

CPC05GFC Board Mount Pressure Sensor Compensated Calibrated Silicon Small Size 0
