XFPM-100KPGV Gauge pressure Snsor Medical Device Non Corrosive

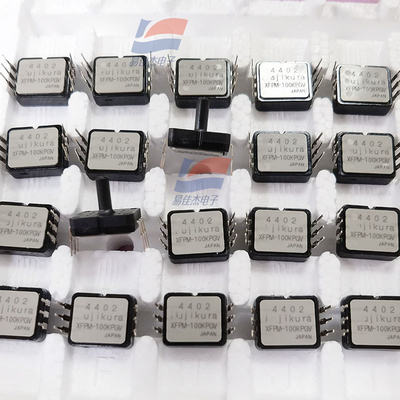

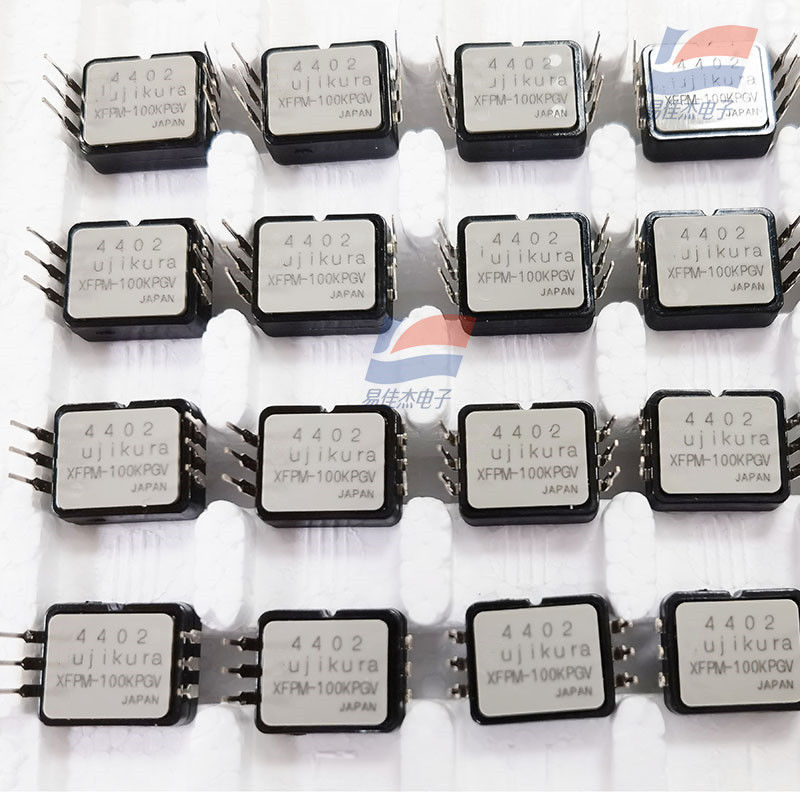

Large Image : XFPM-100KPGV Gauge pressure Snsor Medical Device Non Corrosive

Product Details:

Place of Origin:	Japan
Brand Name:	Fujikura
Model Number:	XFPM-100KPGV

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Package
Delivery Time:	3-5workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10000pcs/Month

Contact Now

XFPM-100KPGV Gauge pressure Snsor Medical Device Non Corrosive

Description

Maximum Excitation Voltage:	8VDC	Measurable Pressure Range (kPa):	0~+100
Rated Pressure:	-100	Excitation Voltage:	5±0.25VDC
Operating Temperature:	-40-125℃	Operating Humidity:	30~80 (No Dew Condensation)%RH
Highlight:	8VDC Excitation Pressure Sensor , XFPM-100KPGV Pressure Sensor , 0-100kPa Pressure Sensor

XFPM-100KPGV Gauge pressure Snsor Medical Device Non Corrosive

Applications
. Industrial instrumentation
. Pressure switch, Pneumatic device
. Medical device

Features
. Two accuracy ranks, 1.5 FS and 2.5 FS available
. Volt level output
. On-chip amplification and temperature compensations
. Pre-calibration of offset voltage and span
. Non-corrosive liquid measurable (XFPMC, XFHMC only)

Specification:

Pressure Type	Gauge Pressure (Negative Pressure)
Rated Pressure	100kPa
Measurable Pressure Range	0~-100kPa
Pressure Medium	Non-corrosive gases only
Package	Dual In-line Package (DIP)
Supply Voltage	5.0V DC±0.25V
Maximum Excitation Voltage	8V DC (1.5 times rated voltage)
Current Consumption	Maximum 10mA
Output Impedance	Maximum 10Ω
Source Current	Maximum 0.2mA
Sink Current	Maximum 2mA
Zero-voltage Offset Voltage	0.2V±0.1125V (at 0kPa)
Full-scale Output Voltage	4.7V±0.1125V (at rated pressure)
Accuracy	±2.5% FS

XFPM-100KPGV Gauge pressure Snsor Medical Device Non Corrosive 0
