XGZP6847A100KPGN Air Pressure Sensor Gauge Type Amplified Analog Output

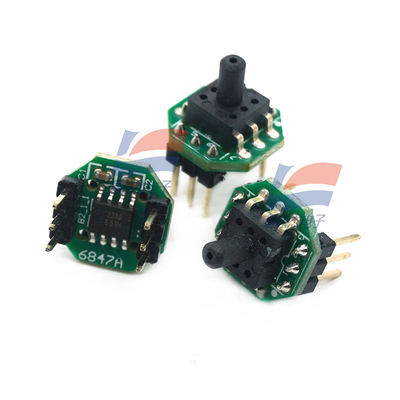

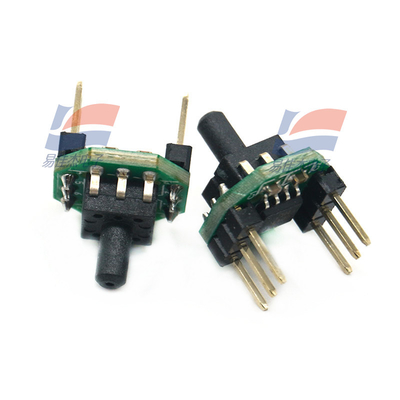

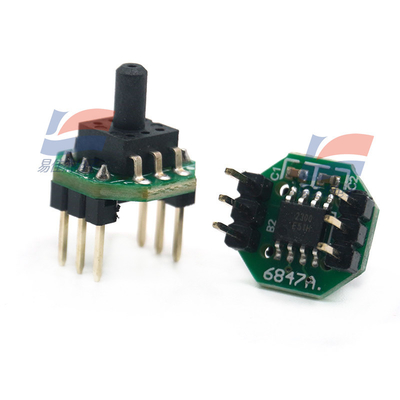

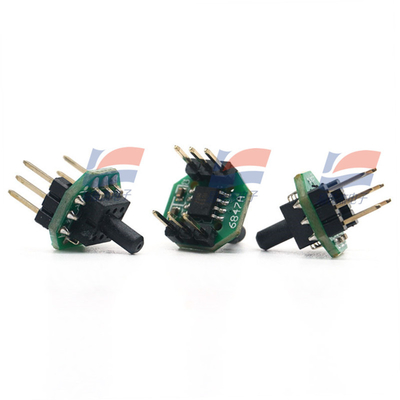

Large Image : XGZP6847A100KPGN Air Pressure Sensor Gauge Type Amplified Analog Output

Product Details:

Place of Origin:	China
Brand Name:	CF Sensor
Model Number:	XGZP6847A100KPGN

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Package
Delivery Time:	3-5workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10000pcs/Month

Contact Now

XGZP6847A100KPGN Air Pressure Sensor Gauge Type Amplified Analog Output

Description

Product Category:

Pressure Sensor

Model Number:

As Order Guide

Pressure Range:

-100kPa…0kPa…1500kPa

Pressure Type:

Gauge

Highlight:

XGZP6847A100KPGN Pressure Sensor

5V Amplified Pressure Sensor

Gauge Pressure Type Pressure Sensor

XGZP6847A100KPGN Air Pressure Sensor Gauge Type Amplified Analog Output

*Wide Ranges: -100kPa…0kPa…1500kPa(show in Pressure Range Example)
*Gauge Pressure Type(Positive&Vacuum)
*For Non-corrosive Gas or Air
*Optional 5V and 3.3V Voltage
*Calibrated Amplified Analog Signal(Refer to XGZP6847D for I2C interface)
*Temp. Compensated: 0℃～+60℃(32℉～+140℉)
*Affordable Cost, Easy-to-use

Specification:

Power Supply	5V/3.3V
Output Type	Amplified Analog
Output	0.5~4.5V/0.2~2.7V
Accuracy	±2.5%(customizable)
Measured Media	Air or Non-corrosive Gas
Temp. Compensated	0℃～+60℃(32℉～+140℉)
Operating Temp	-30~100°C

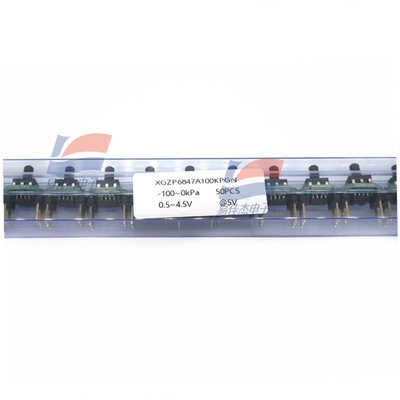

Package	Plastic Tube

XGZP6847A100KPGN Air Pressure Sensor Gauge Type Amplified Analog Output 0
