S14137-01CR Photosensor With Front End IC Compact 16 Element APD array

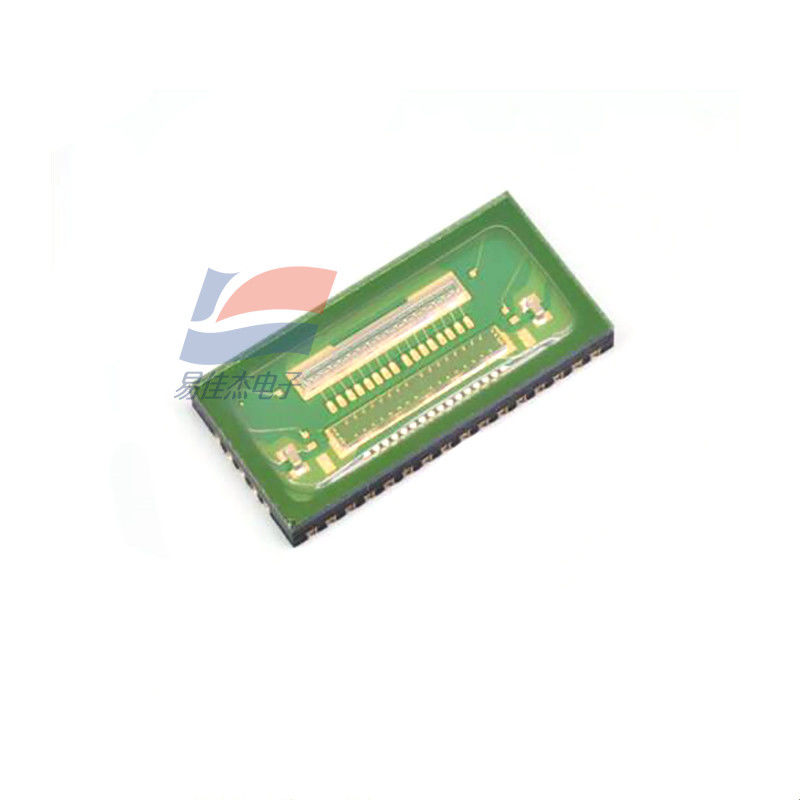

Large Image : S14137-01CR Photosensor With Front End IC Compact 16 Element APD array

Product Details:

Place of Origin:	Japan
Brand Name:	Hamamastu
Model Number:	S14137-01CR

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Package
Delivery Time:	3-5workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10000pcs/Month

Contact Now

S14137-01CR Photosensor With Front End IC Compact 16 Element APD array

Description

Number Of Output:	16	Element Pitch:	0.5mm
Photosensitive Area (per Element):	0.15 X 0.43mm	Detector:	Si APD Array
Number Of Elements:	16	Package:	Plastic
Highlight:	0.15 X 0.43mm Infrared Detector Sensor , S14137-01CR Infrared Detector Sensor , 16 Elements Infrared Detector Sensor

S14137-01CR Photosensor With Front End IC Compact 16 Element APD array

Compact 16-element APD array suitable for various light level detection (parallel output)

The S14137-01CR is a compact optical device that integrates a 16-element APD array and a preamp. The incident light pulse is converted into a voltage pulse, and then the converted pulse is output. It has a built-in DC feedback circuit for reducing the eﬀects of background light. The parallel output 16-element array enables simultaneous measurement of all pixels.

Features
-16 ch parallel output
-High-speed response: 180 MHz
-Reduced background light effects
-No waveform distortion when excessive light is incident

Specification:

Package	Plastic
Number of channel	16 ch
Photosensitive area/ch	0.15 × 0.43 mm
Spectral response range	420 to 1150 nm
Peak sensitivity wavelength	840 nm
Photosensitivity	36 kV/W
High Band Cut-off Frequency	180 MHz
Note Photosensitivity	λ=905 nm, M=50
