S14645 Si APD High Speed Compact Surface Mount High Sensitivity Featuring Low Bias Operation

S14645 Si APD High Speed Compact Surface Mount High Sensitivity Featuring Low Bias Operation

High speed, compact Si APD for LiDAR (900 nm band) featuring low-bias operation

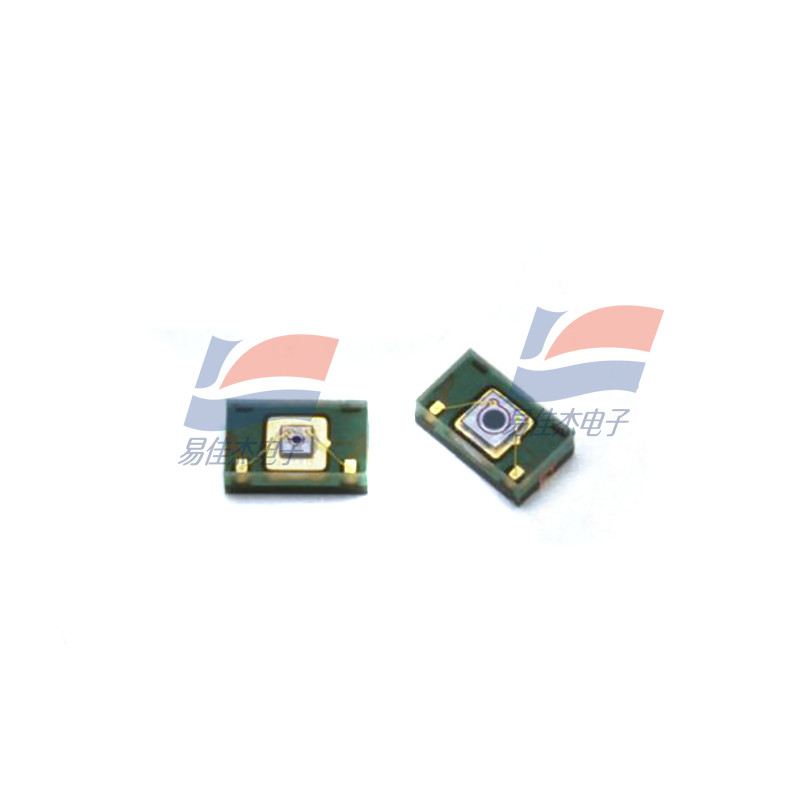

This is a compact, surface mount type Si APD that achieves high sensitivity in the 900 nm band. This is suitable for laser monitoring of optical rangefinders widely used from consumer electronics to industrial uses.

Features
- Small package: 3.1 × 1.8 × 1.0t mm
- Peak sensitivity wavelength: 840 nm (M=100)
- Low bias operation: Breakdown voltage=195 V max.
- High-speed response: Cutoff frequency=600 MHz typ. (λ=900 nm, M=100)
- Reduction of breakdown voltage variation: 175 ± 20 V

Specification:
