S15639-1325PS Near infrared high sensitivity MPPC SiPM Multi Pixel Photon Conuter

Large Image : S15639-1325PS Near infrared high sensitivity MPPC SiPM Multi Pixel Photon Conuter

Product Details:

Place of Origin:	Japan
Brand Name:	Hamamastu
Model Number:	S15639-1325PS

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Package
Delivery Time:	3-5workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10000pcs/Month

Contact Now

S15639-1325PS Near infrared high sensitivity MPPC SiPM Multi Pixel Photon Conuter

Description

Effective Photosensitive Area:	1.3 X 1.1mm	Thermal Resistance:	409
Pixel Pitch:	25um	Refractive Index Of Window Material:	1.57
Number Of Pixels:	2120	Package:	Surface Mount Type
Highlight:	IR Infrared Photoelectric Sensor , IR Infrared Photoelectric Sensor Module , Silicone Resin Window Infrared Photoelectric Sensor

S15639-1325PS Near infrared high sensitivity MPPC SiPM Multi Pixel Photon Conuter

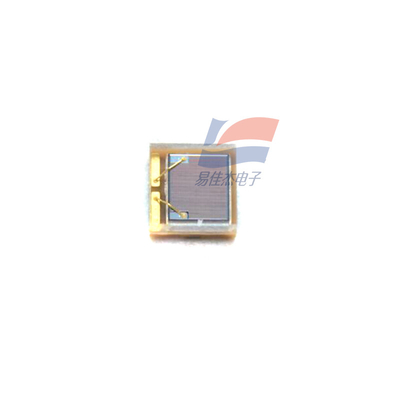

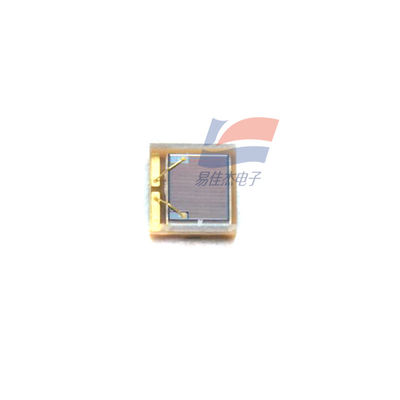

Near infrared high sensitivity MPPC (SiPM)

The S15639-1325PS is a surface mount type MPPC (SiPM) designed for automotive LiDAR applications that achieves high sensitivity and low afterpulses.

Features
- High photon detection efficiency: 9% (λ=905 nm)
- Low afterpulse probability: 1% max.
- High gain: 1.3 × 106
- Low crosstalk

Applications
*Distance measurement
*LIDAR Low crosstalk

Specification:

Package type	Glass epoxy
Number of channels	1 ch
Effective photosensitive area / ch	1.3 × 1.1 mm
Number of pixels /ch	2120
Pixel size	25 μm
Spectral response range	400 to 1000 nm
Peak sensitivity wavelength (typ.)	660 nm
Dark count/ch (typ.)	700 kcps
Terminal capacitance/ch (typ.)	42 pF
Gain (typ.)	1.3 × 106
Measurement condition	Ta=25 ℃

S15639-1325PS Near infrared high sensitivity MPPC SiPM Multi Pixel Photon Conuter 0
