S16429-01CT Photosensor With Front End IC Built In Gain Stabilized APD

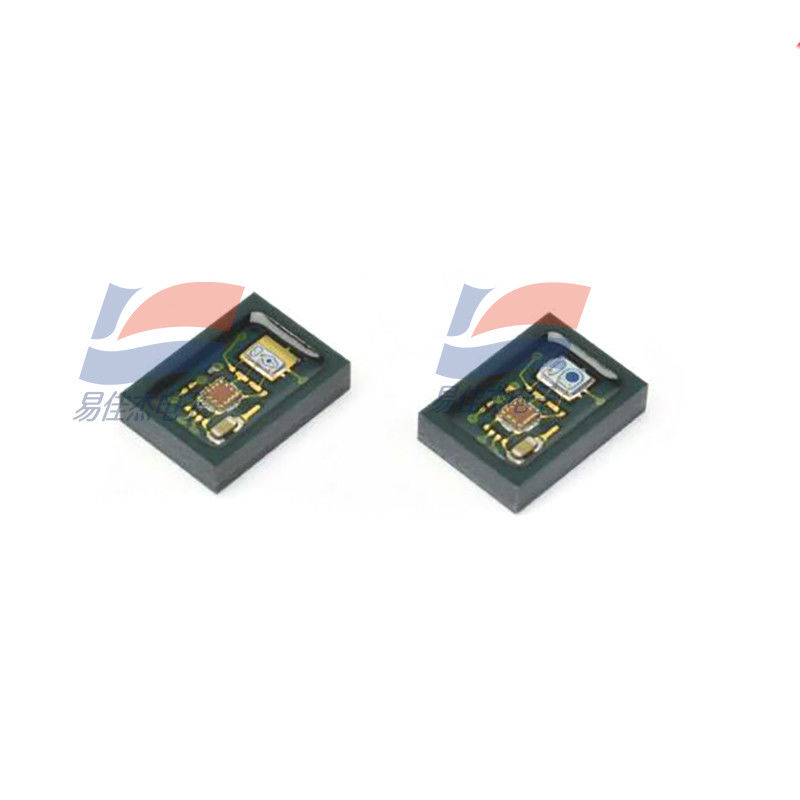

Large Image : S16429-01CT Photosensor With Front End IC Built In Gain Stabilized APD

Product Details:

Place of Origin:	Japan
Brand Name:	Hamamastu
Model Number:	S16429-01CT

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Package
Delivery Time:	3-5workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000pcs/Month

Contact Now

S16429-01CT Photosensor With Front End IC Built In Gain Stabilized APD

Description

Photosensitive Area:	Diameter 0.2mm	Reverse Voltage:	0 To VBR
Sealing Material:	Silicone Resin	Dperating Temperature:	-40 To +105℃
Supply Voltage:	4.0V	Package:	Glass Epoxy
Highlight:	Silicone Resin Infrared Photoelectric Sensor , Sealed Infrared Photoelectric Sensor , S16429-01CT Infrared Photoelectric Sensor

S16429-01CT Photosensor With Front End IC Built In Gain Stabilized APD

Features
- Stable gain against temperature fluctuations
- No gain adjustment according to individual differences required
- Built-in high-speed transimpedance amplifier: 300 MHz
- Low noise
- No ringing

Specification:

Package	Glass epoxy
Number of channel	1 ch
Photosensitive area/ch	φ0.2 mm
Spectral response range	400 to 1100 nm
Peak sensitivity wavelength	840 nm
Photosensitivity	0.5 A/W
High Band Cut-off Frequency	300 MHz
Note	Photosensitivity: λ=905 nm, M=1

S16429-01CT Photosensor With Front End IC Built In Gain Stabilized APD 0
