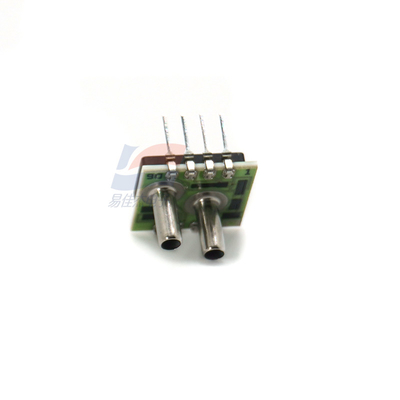

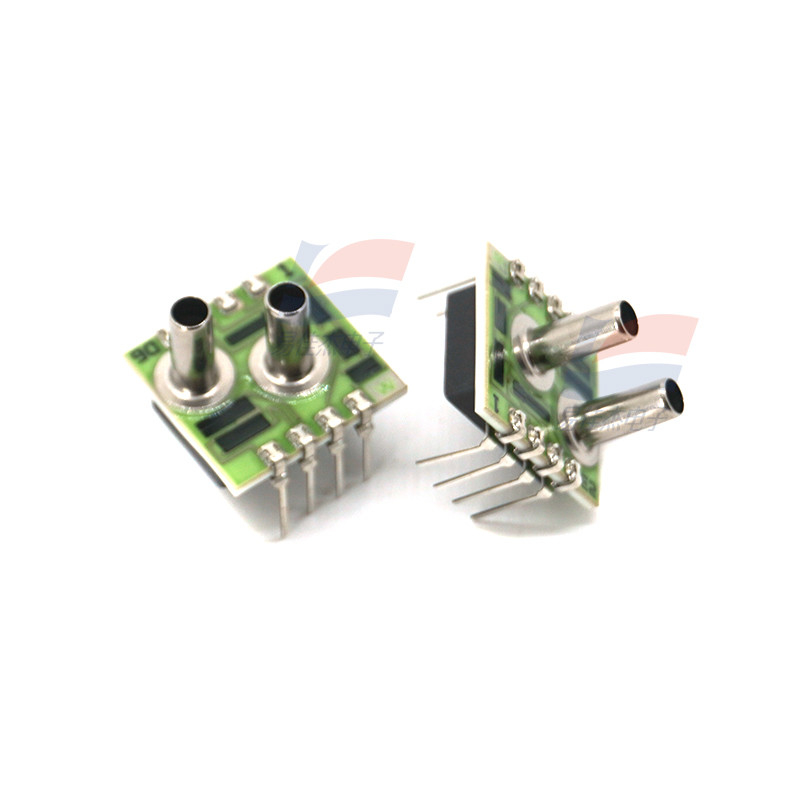

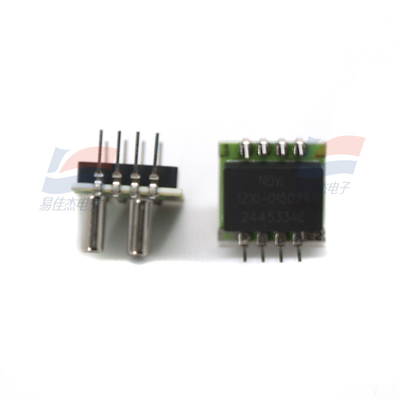

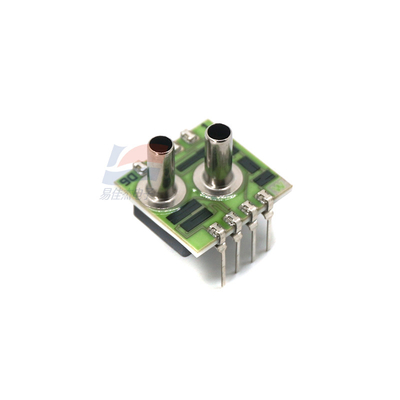

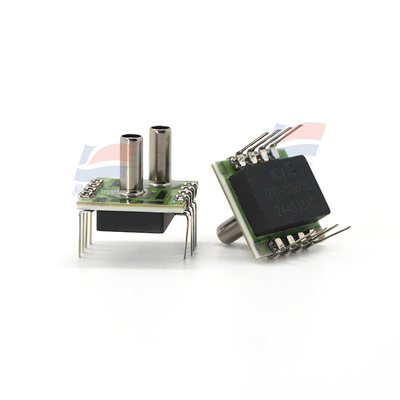

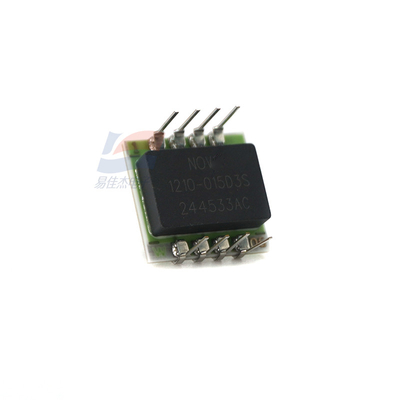

NPC1210-015D-3S Board Mount Pressure Sensors Differential Dual Axial Barbless

Large Image : NPC1210-015D-3S Board Mount Pressure Sensors Differential Dual Axial Barbless

Product Details:

Place of Origin:	USA
Brand Name:	Amphenol
Model Number:	NPC1210-015D-3S

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Package
Delivery Time:	3-5workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10000pcs/Month

Contact Now

NPC1210-015D-3S Board Mount Pressure Sensors Differential Dual Axial Barbless

Description

Operating Pressure:	15 Psi	Minimum Operating Temperature:	-40 Degrees Celsius
Port Size:	3.23 Mm	Mounting Style:	Through Hole
Pressure Type:	Differential	Product Category:	Board Mount Pressure Sensors
Package/Case:	DIP-8	Output Type:	Analog
Highlight:	Thru Hole Mount Differential Pressure Sensor , 15 Psi Differential Pressure Sensor , NPC1210-015D-3S Differential Pressure Sensor

NPC1210-015D-3S Board Mount Pressure Sensors Differential Dual Axial Barbless

Product Features
* Employs Senstable piezoresistive sensing technology; the silicon sensing element is fabricated using ion implantation, resulting in high force-to-electricity conversion efficiency.
* Features temperature compensation, ensuring stable performance within the 0~60℃ range.
* Highly interchangeable; includes a built-in gain setting resistor, supporting field replacement.
* Solid-state sensor design ensures high reliability; each component is traceable.

Specification:

Pressure Type	Differential
Operating Pressure	15 psi
Accuracy	0.5 %
Output Type	Analog
Mounting Style	Through Hole
Operating Supply Voltage	75 mV to 150 mV
Port Type	Dual Axial Barbless
Package / Case	DIP-8
Minimum Operating Temperature	- 40℃
Maximum Operating Temperature	+ 125℃
Port Size	3.23 mm
Supply Voltage - Max	150 mV
Supply Voltage - Min	75 mV

NPC1210-015D-3S Board Mount Pressure Sensors Differential Dual Axial Barbless 0
