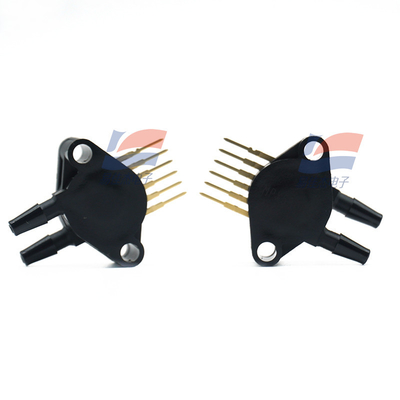

YJJ MPX10DP 10KPA Dual-Port Uncompensated Differential Pressure Sensor

Product Description:

YJJ MPX10DP Dual-Port Uncompensated Differential Pressure Sensor

Features:

Dual-port, non-compensated differential pressure sensor, range 0–10 kPa, analog voltage output, compatible with 3.0–6.0 V power supply, suitable for micro-pressure, differential pressure and liquid level/flow detection scenarios.

Key parameters (quick overview) Table

Parameter item Typical / Limit value Explanation

Pressure type Differential pressure Dual ports, measure pressure difference between two ends

Range 0–10 kPa (0–1.45 psi) Micro-pressure measurement

Power supply 3.0–6.0 VDC Ratiometric output

Full-scale output (VFSS) Typical 35 mV (20–50 mV) Linearly proportional to pressure

Sensitivity 3.5 mV/kPa Convenient conversion

Linearity ±1.0 %VFSS Foundation of overall accuracy

Response time 1.0 ms (10%–90%) Fast dynamic response

Operating temperature -40 to +125 ℃ Wide temperature range suitable for industrial / medical

Overpressure protection 75 kPa; Burst 100 kPa Resistance to misuse

Output impedance 750–1250 Ω Easy to match ADC / operational amplifier

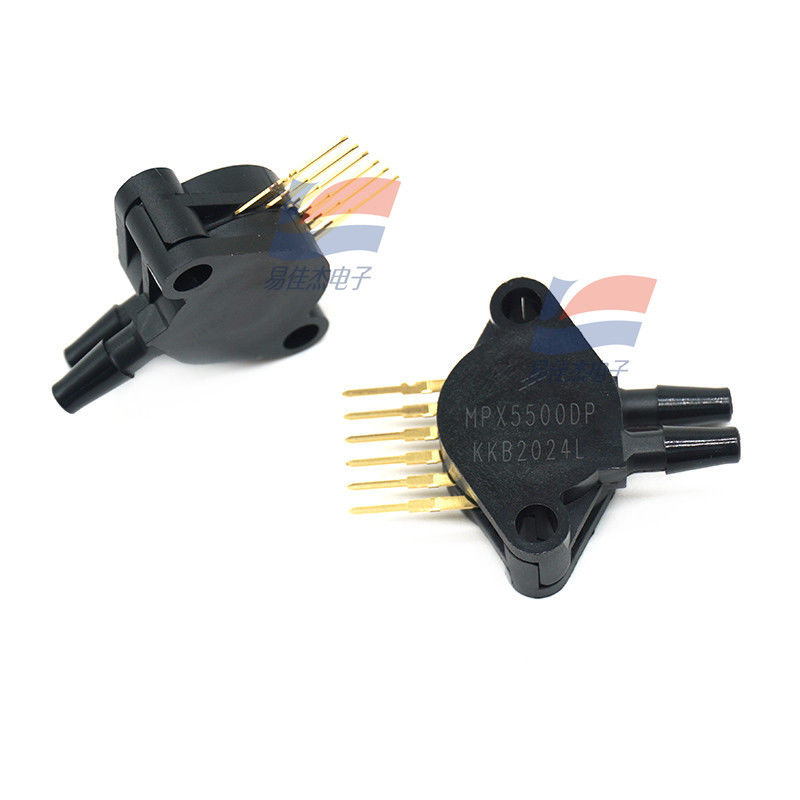

Package 4-pin through-hole (Case 344C) Dual radial ports, same side outlet

Principle and characteristics

Strain gauge type MEMS silicon shear stress sensor, diaphragm deformation changes the resistance of the bridge, output voltage proportional to pressure difference.

No internal temperature compensation / calibration, requires external circuit compensation, convenient for customizing accuracy and temperature drift.

Ratiometric output: Output is scaled proportionally when power supply changes, suitable for 3.3 V/5 V systems. Main purpose

Medical: Ventilator airway pressure, negative pressure drainage, monitor pressure difference detection.

Industrial: Ventilation and air conditioning air volume / pressure difference, leakage detection, process control, pneumatic system.

Robotics / Automation: Air cylinder pressure, liquid level indication, flow measurement.

Consumer / Environment: Washing machine water level, environmental control system, leakage location.

Selection and usage tips

Without compensation, an external temperature compensation and signal conditioning are required. A 16-bit ADC can improve the resolution.

The dual ports need to be correctly connected for pressure. Avoid abnormal measurement caused by reverse pressure difference.

Select 3.3 V or 5 V according to the system power supply. Calibrate the zero point / full scale according to the range and accuracy requirements.
