Product Details:
|
| Application: | PCB Mounting | Pressure Type: | Differential |
|---|---|---|---|
| Working Pressure: | -0.005kPa ~ 0.125kPa | Output Type: | Analog Voltage |
| Output: | 0.25V~4V | Accuracy: | ±0.3% |
| Highlight: | SDP1000-L05 Analog Differential Pressure Sensor,Industrial Applications Analog Differential Pressure Sensor,Industrial Applications Pressure Sensor |
||

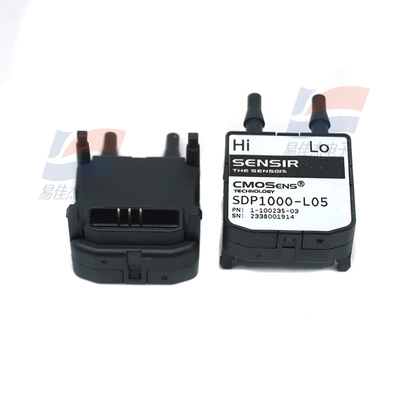

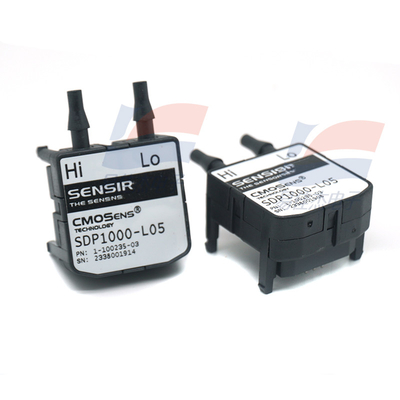

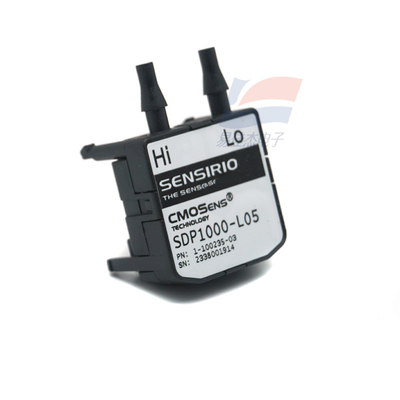

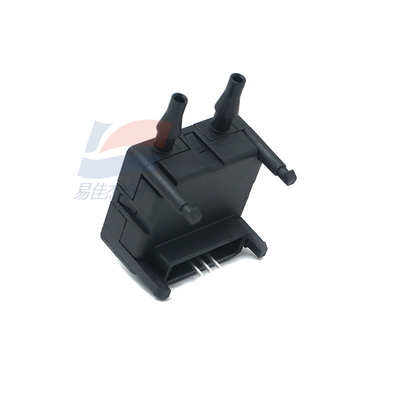

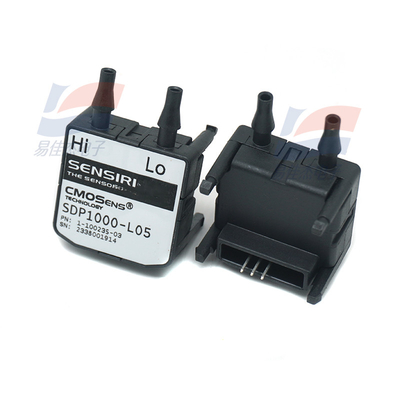

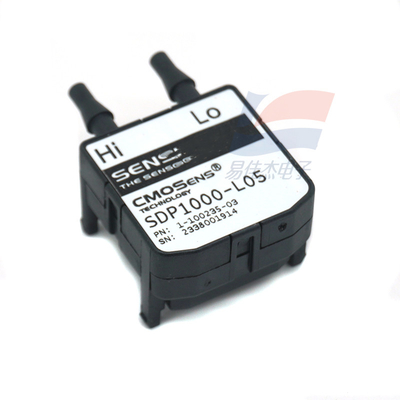

SDP1000-L05 Analog Differential Pressure Sensor Analog voltage output
Low Range Differential Pressure Sensor
for Air and Non-Aggressive Gases
Datasheet – v5.1
− For HVAC and medical OEM applications
− Unsurpassed performance thanks to CMOSens® technology
− Offset and hysteresis free
− Excellent accuracy and reproducibility even below 10 Pa
− Fully calibrated and temperature compensated
− Linear or square root extracted output characteristics available
− Not sensitive to the mounting orientation
− Direct PCB mounting with simple snap-on system
| Port Size Male | - 0.2 in (5.2 mm) tube, dual |
| Port Style | Barbed |
| Features | Temperature Compensated |
| Maximum Pressure | 100 kPa |
| Operating Temperature | -10°C to 60°C |
| Package | Module |
