Product Details:
|
| Pressure Type: | Absolute | Working Pressure: | 15 Psi |
|---|---|---|---|
| Accuracy: | 2% | Output Type: | Analog |
| Mounting Style: | Through Hole | ||
| Highlight: | Absolute Type Board Mount Pressure Sensor,ASDXACX015PAAA5 Pressure Sensor,ASDXACX015PAAA5 Board Mount Pressure Sensor |
||

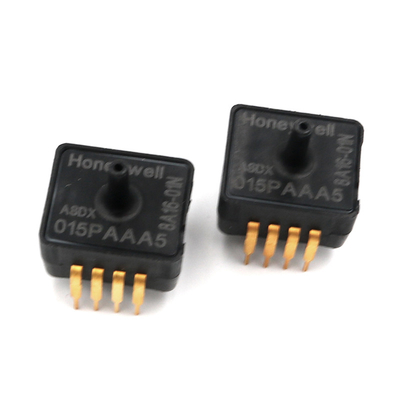

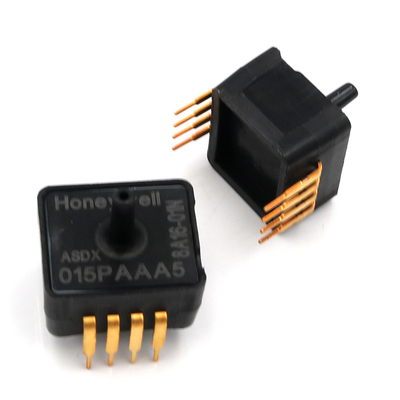

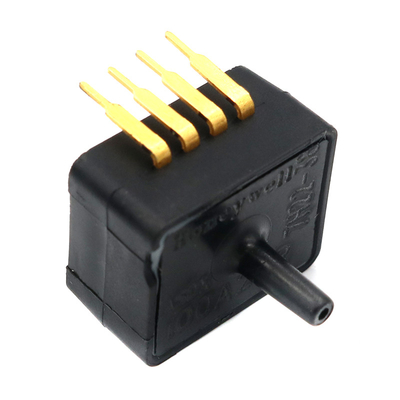

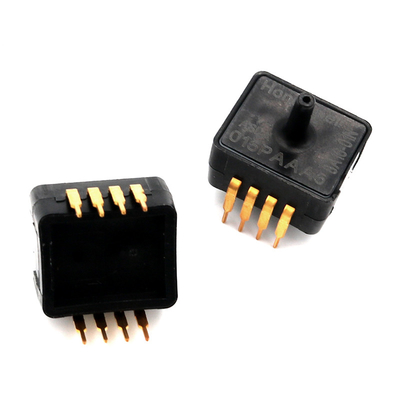

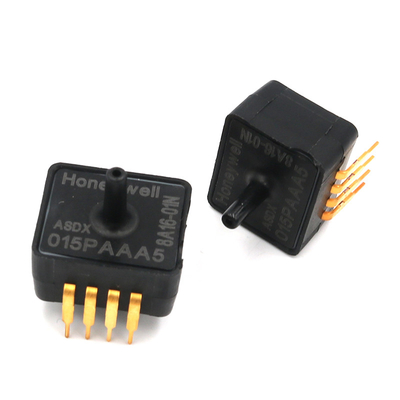

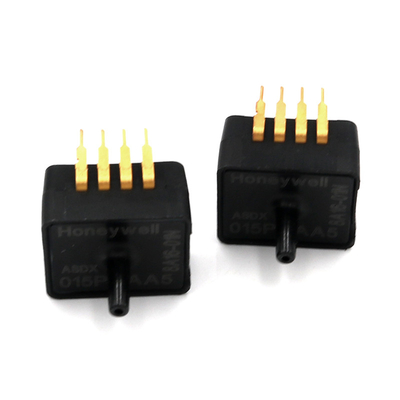

ASDXACX015PAAA5 Board Mount Pressure Sensor Absolute Type
FEATURES
· Ratiometric 12-bit analog output
· Precision ASIC conditioning and temperature
compensated over 0 °C to 85 °C [32 °F to 185 °F]
temperature range
· Low operating voltage
· Absolute, differential and gage types
· Pressure ranges from 10 inches H20 to 100 psi
· Standard calibrations in inches H20, cm H20, psi, mbar,
bar, kPa
· Total error band of ±2.0% of full scale span maximum
· RoHS compliant
POTENTIAL APPLICATIONS
· Flow calibrators
· Ventilation and air flow monitors
· Gas flow instrumentation
· Sleep apnea monitoring and therapy equipment
· Barometry
· Pneumatic controls
· HVAC
| Operating Supply Voltage | 5V |
| Port Type | Single-Axis Barbless |
| Package/Case | DIP-8 |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +105°C |
| Operating Supply Current | 3.5mA |
| Port Size | 2.31mm |
| Supply Voltage - Maximum | 5.25V |
| Supply Voltage - Minimum | 4.75V |
