Product Details:
|
| Receiving Surface: | 5.9 × 1.1mm | Package: | Ceramic |
|---|---|---|---|
| Reverse Voltage (Max.): | 5V | Dark Current (Max.): | 5 PA |
| Highlight: | Precision Photometric Suppression Silicon Photodiodes,Quartz Window Type Silicon Photodiodes,Visible Bands Silicon Photodiodes |
||
Product Description:

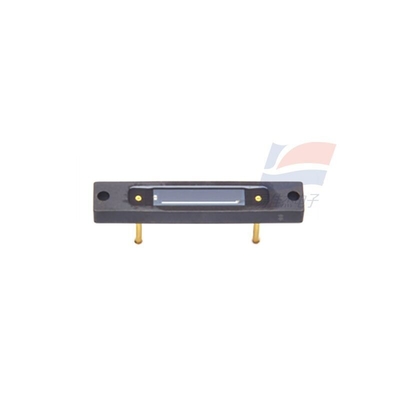

S1227-16BQ Quartz Window Type Is Suitable For Precision Photometric Suppression Of Infrared Sensitivity Silicon Photodiodes In The Ultraviolet To Visible Bands
Features:
Receiving surface 5.9 × 1.1mm
Encapsulated ceramics
Package category --
Refrigeration uncooled type
Reverse voltage (Max.) 5 V
Spectral response range 190 to 1000 nm
Maximum sensitivity wavelength (typical value) 720 nm
Photosensitivity (typical value) 0.36A /W
Dark current (Max.) 5 pA
Rise time (typical value) 0.5μs
Junction capacitance (typical) 170 pF
Noise equivalent power (typical value) 2.5×10-15 W/Hz1/2
Typical values of measurement conditions Ta=25°C, photosensitivity: λ = 720 nm, dark current: VR = 10 mV, junction capacitance: VR = 0 V, f = 10 kHz, unless otherwise stated
Specifications:
| Spectral response range | 190 to 1000 nm |
| Maximum sensitivity wavelength (typical value) | 720 nm |
| Photosensitivity (typical value) | 0.36A /W |
| Dark current (Max.) | 5 pA |
