Product Details:
|
| Output Voltage: | 5V | Operating Power Supply Voltage: | 8V To 15V |
|---|---|---|---|
| Port Size: | 6.35 Mm | Shell Material: | Silicon |
| Highlight: | Microbridge Gas Mass Flow Sensor,YJJ Gas Mass Flow Sensor |
||
Product Description:

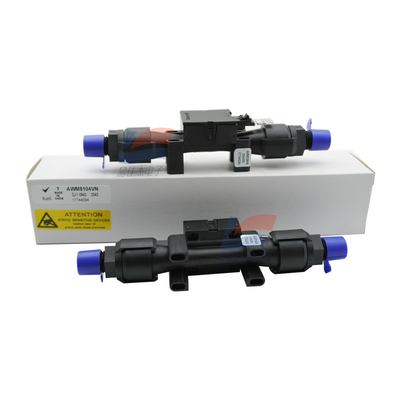

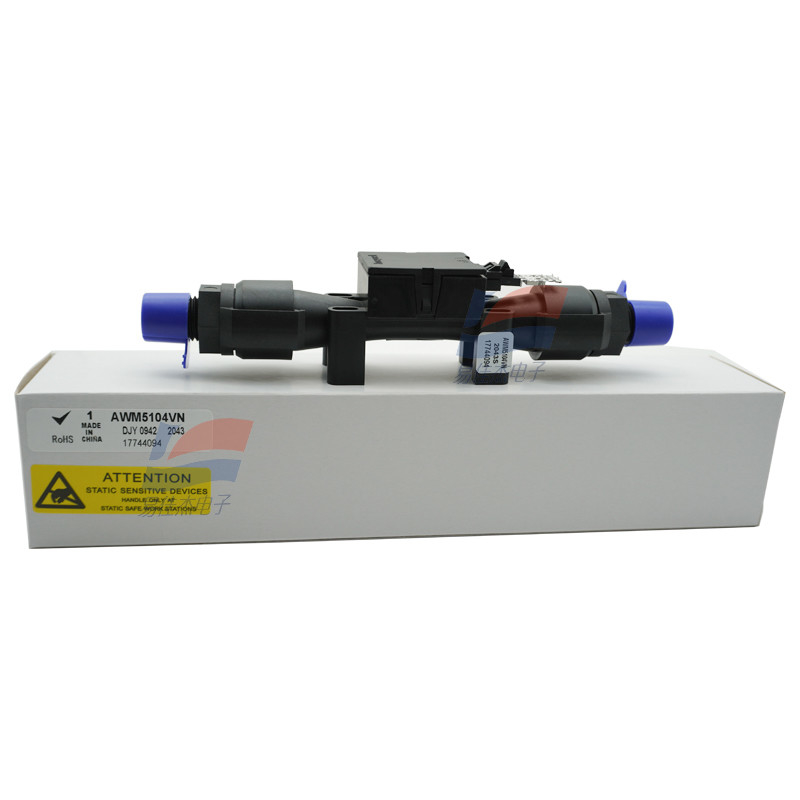

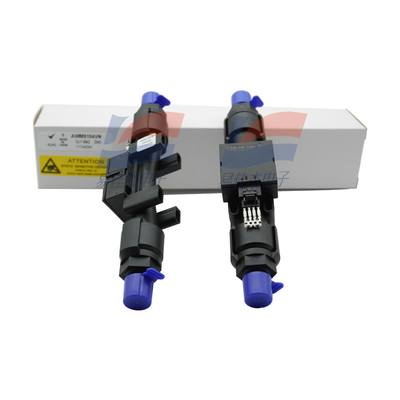

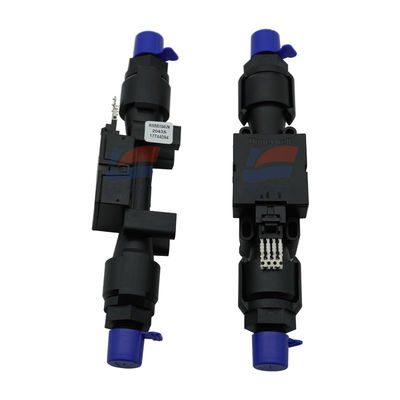

AWM5104VN Microbridge Gas Mass Flow Sensor Is Used In Medical Devices
Features:
AWM5000 series micro-bridge gas mass flow sensors feature Venturi tube housing and can measure flow rates up to 20SLPM with a pressure drop of no more than 2.25 "water column. The microbridge chip directly contacts the airflow, greatly reducing the possibility of error caused by through hole or bypass blockage. Rugged plastic package designed to withstand common-mode pressures up to 50psi. The internal small sensing element can withstand the impact of 100gs with no impact on performance. Comes with AMP-compatible connectors for reliable connectivity in demanding applications.
Product characteristics
• Linear voltage output
• Venturi tube design
• Remote installation function
• Laser calibration, high interchangeability
• Multiple calibration gas types
Product application
• Medical equipment
• Leak detection equipment
• Mass flow controller
• Environmental climate control devices
• Fuel cell control unit
Specifications:
| Type | Mass Air Flow Sensor |
| Used for | Dry Gas |
| Range | 0 L/min to 20 L/min |
| Accuracy | 0.5% |
