Product Details:
|
| Operating Power Supply Voltage: | 8V To 15V | Port Size: | 22 Mm |
|---|---|---|---|
| Shell Material: | Silicon | Maximum Operating Temperature: | + 85 C |
| Minimum Operating Temperature: | -25 C | ||
| Highlight: | Lasers Microbridge High Flow Sensor |
||
Product Description:

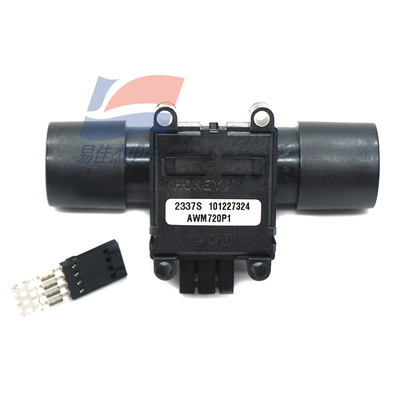

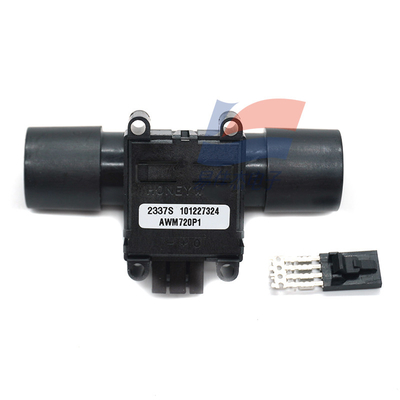

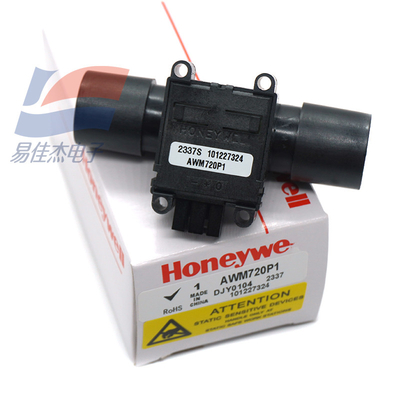

AWM720P1 Microbridge High Flow Sensor Is Used For Process Gas Control Welding Equipment And Lasers
Features:
AWM700 series of microbridge large flow sensors offers in-line flow measurement and a specially designed bypass package that measures flow up to standard 200 standard liters per minute (200SLPM) while resulting in a typical pressure drop of 1 inch water column. The AWM720P1 achieves a large flow range in a small package, the AWM720P1 has a 6ms reaction time, 10V DC power supply, power consumption of only 60mW, compact plastic package, can withstand overvoltage to 25PSI without affecting the indicator. The sensor's AWP compatible connector provides a reliable electrical connection. This sensor is also well suited with portable devices and battery powered devices.
Product characteristics
• Online traffic measurement
• Small package large flow range measurement
• High stability at zero and full scale: most applications do not require recalibration
• Enhanced response traffic time 6ms: Capture full traffic activity
• Low energy consumption
Product application
• Mass flow controller
• Telecommunication system
• Environmental climate control
• Fuel cell control
• Process gas controls welding equipment and lasers
Specifications:
| Type | Mass Air Flow Sensor |
| Used for | Dry Gas |
| Range | 200 SLPM |
| Accuracy | 0.5% |
